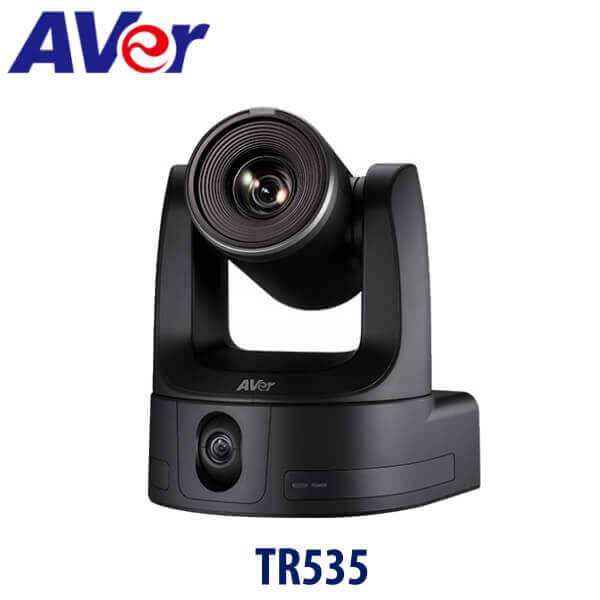

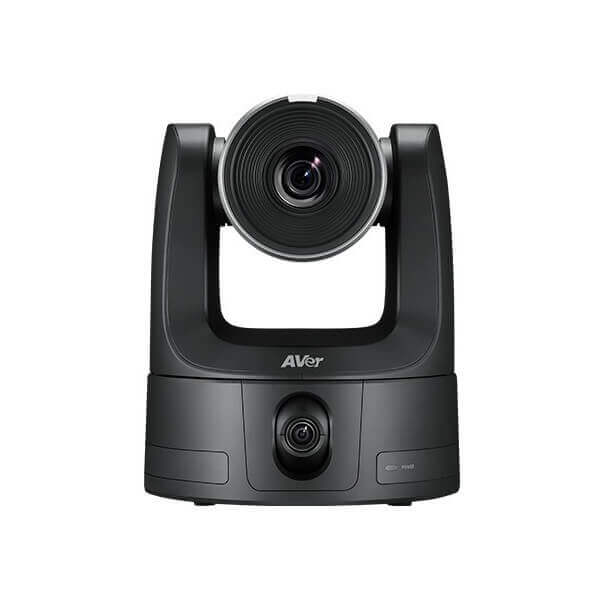

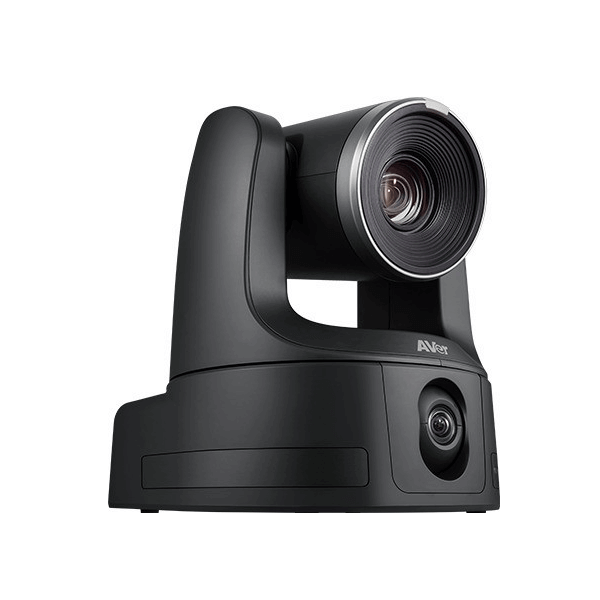

Aver TR535 Dual Lens Auto Tracking Camera Ghana

Step into the future of streaming technology with the Aver TR535 Ghana  Dual Lens Auto Tracking Camera, a revolutionary tool for professionals in broadcasting, streaming, and recording. Designed to meet the high demands of fast-paced, dynamic environments, this camera combines state-of-the-art AI technology with industry-leading optics to offer a superior solution for capturing high-quality video.

The Aver TR535 Ghana boasts an impressive 30X zoom lens alongside a wide-angle lens, allowing you to capture everything from minute details to sweeping panoramic views. Whether you need to focus on a small, intricate object or cover an entire room with a single shot, the TR535 delivers with remarkable precision. Its 4K PTZ camera guarantees crystal-clear image quality, ensuring that every scene comes to life with unparalleled sharpness and vibrant color.

What truly distinguishes the Aver TR535 Ghana is its four AI-powered tracking modes, which offer a new level of accuracy and adaptability when following moving subjects. These intelligent modes adjust to your needs, providing seamless automated transitions and keeping your footage smooth and professional. With the TR535, you’re not just recording video—you’re creating an immersive, high-quality visual experience. Embrace the cutting-edge of automated streaming with the Aver TR535 Ghana and take your content to extraordinary new levels.

Features

• Dual Lens Design
• 4K Ultra HD Resolution
• 30X Optical Zoom
• IP/HDMI/USB/3G-SDI
• PiP Mode
• 4 Auto Tracking Modes
• Multi-Presenter Detection
• Human Detection AI
• Voice Tracking
• 5-Year Warranty

Technical Specifications

PTZ Camera

• Image Sensor
  • 1/2.8” 4K Sony Exmor CMOS
• Effective Picture Elements
  • 8 Megapixels
• Output Resolutions
  • 4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination
  • 5 lux (IRE50, F1.6, 30fps)
• S/N Ratio
  • ≥ 50 dB
• Gain
  • Auto, Manual
• TV Lines
  • 1600 (Center)
• Shutter Speed
  • 1/1 to 1/10,000 sec
• Exposure Control
  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance
  • Auto, Manual, ATW, One Push, Indoor, Outdoor
• Optical Zoom
  • 30X
• Digital Zoom
  • 1X
• Total Zoom
  • 30X
• Viewing Angles
  • DFOV: 69.2° (Wide) to 2.8° (Tele)
  • HFOV: 62.3° (Wide) to 2.5° (Tele)
  • VFOV: 37.3° (Wide) to 1.4° (Tele)
• Focal Length
  • f = 4.5 mm (Wide) to 135 mm (Tele)
• Aperture (Iris)
  • F = 1.8 (Wide) to 4.7 (Tele)
• Minimum Working Distance
  • 1 m (Wide)
  • 2 m (Tele)
• Pan / Tilt Angles
  • Pan : ±170°
  • Tilt : +90° / -30°
• Pan / Tilt Speed (Manual)
  • Pan : 0.1° to 100° / sec
  • Tilt : 0.1° to 100° / sec
• Preset Speed
  • Pan : 200° / sec
  • Tilt : 200° / sec
• Preset Positions
  • 10 (IR)
  • 256 (RS-232, RS-422, IP)
• Camera Control – Interfaces
  • RS-232 (DIN8)
  • RS-422 (RJ45)
  • IP
  • USB
• Camera Control – Protocols
  • VISCA (RS-232 / RS-422 / IP)
  • PELCO-D & PELCO-P (RS-232 / RS-422)
  • CGI (IP)
  • USB
  • ONVIF
• Image Processing
  • Noise Reduction (2D / 3D)
  • Flip
  • Mirror
  • WDR
  • BLC
• Power Frequencies
  • 50 Hz, 60 Hz

Wide Angle Camera

• Image Sensor
  • 1/2.8” 4K Sony Low Lux CMOS
• Effective Picture Elements
  • 8 Megapixels
• Output Resolutions
  • 4K/30
• Focal Length
  • 22 mm
• White Balance
  • Auto
• Exposure
  • Auto
• Viewing Angles
  • DFOV: 113°
  • HFOV: 105°
  • VFOV: 71°
• Pan / Tilt Angles
  • Tilt: +18° / -90°

AI Auto Tracking Functions

• Tracking Modes
  • Presenter Mode
  • Zone Mode
  • Hybrid Mode
  • Segment Mode

Privacy Protection Mechanisms

• Protection Mode
  • Sleep Mode

Audio

• Channels
  • 2ch Stereo
• Codecs
  • AAC-LC (48 K)
• Sample Rates
  • 48 KHz

Interface

• Video Outputs
  • 3G-SDI, HDMI x 2, IP, USB
• Audio Outputs
  • 3G-SDI, HDMI x 2, IP, USB
• Audio Inputs
  • MIC in, Line in

General

• Power Requirement
  • AC 100 – 240V to DC 12V/5A
• Power Consumption
  • 29W
• PoE
  • PoE++
• Dimensions (W x H x D)
  • 5 x 250.7 x 218.5 mm
• Net Weight
  • 6 (±0.1) kg
• Application
  • Indoor
• Tally Lamp
  • Yes
• Security
  • Kensington Slot
• Remote Control
  • Infrared
• Operating Conditions
  • Temperature: 0 °C to +40 °C
  • Humidity: 20% to 80%
• Storage Conditions
  • Temperature : -20 °C to +60 °C
  • Humidity: 20% to 95%
• Sustainability
  • Plastic Material: ABS
  • Sustainability Method: PCR-PC
  • Recycled Content %: 30%

IP Streaming

• Resolution
  • 4K 60fps
• Network Video Compress Formats
  • 264, H.265, MJPEG
• Network Audio Compress Formats
  • AAC-LC (48 K)
• Maximum Frame Rate
  • 2160p 60fps
• Bit-Rate Control Modes
  • VBR, CBR (selectable)
• Range of Bit-Rate Setting
  • 512 Kbps to 64 Mbps
• Network Interface
  • 10 / 100 / 1000 / 2500 Base-T
• Multi-Stream Capability
  • 7
  • 4K 60fps: RTSP (x2), HDMI (x2) & USB (x2)
  • 1080p 60fps: 3G-SDI
• Network Protocols
  • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
• NDI^®High Bandwidth
  • N/A
• NDI^®HX2
  • N/A
• NDI^®Genlock
  • N/A
• NDI^®Embedded Bridge
  • N/A

USB

• Connector
  • USB 3.2 Gen 1
• Video Formats
  • MJPEG, YUY2
• Audio Format
  • PCM
• Maximum Video Resolution
  • 2160p
• USB Video Class (UVC)
  • UVC 1.1
• USB Audio Class (UAC)
  • UAC 1.0

Web UI

• Live Video Preview
  • Yes
• Camera PTZ Control
  • Pan, Tilt, Zoom, Focus, Preset Control
• Camera / Image Adjustment
  • Exposure, White Balance, Picture
• Network Configuration
  • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search and Configuration Tool
  • Support Windows^®7 or later
• PTZ Management
  • Support Windows^®7 or later
• PTZ Control Panel
  • Supports iOS & iPadOS^®9 or later
• PTZ Link
  • Supports Windows^®7 or later, macOS^®14 or later
• OBS Plugin for PTZ Cameras
  • Supports Windows^®8 or later, macOS^® High Sierra v10.13 or later
• CaptureShare
  • Supports Windows^®7 or later, macOS^®14 or later

Warranty

• Camera
  • 5 Years
• Accessories
  • 1 Year
• Package Contents
  • Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x 7), M2 x 4 mm Screw (x 5), M3 x 6 mm Screw (x3), 1/4′-20L 6.5mm Screw (x2), Cable Fixing Plate (x 2), Ceiling Mount Bracket (x 2), Drilling Paper, Quick Start Guide
• Optional Accessories
  • Aver CL01 PTZ Camera Controller, L-Type Wall Mount
