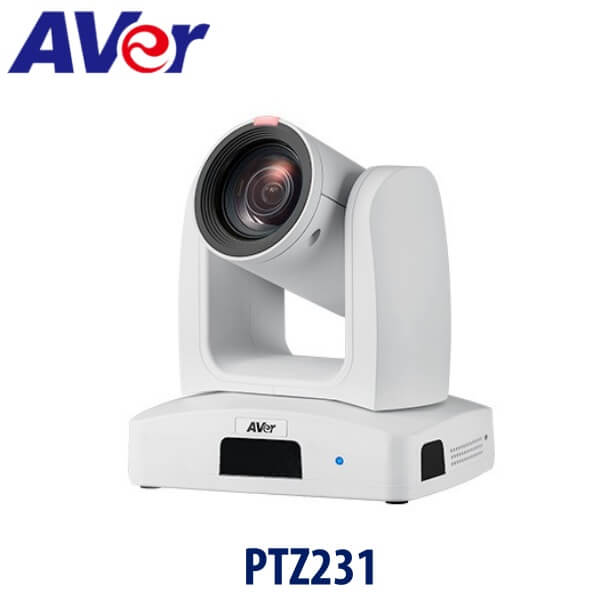

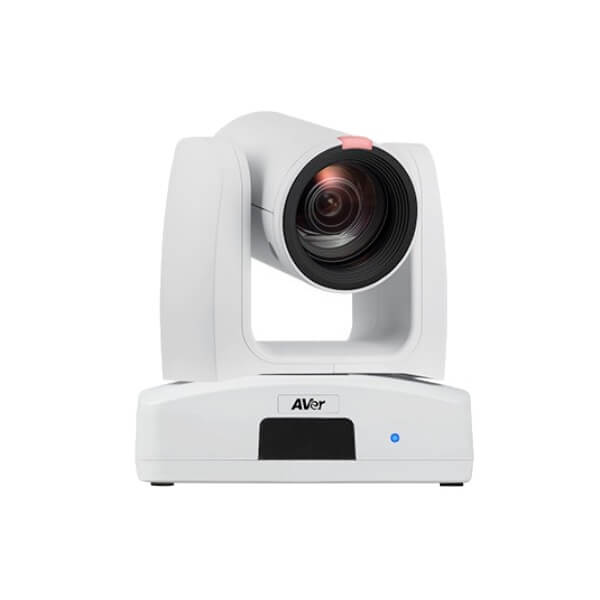

Aver PTZ231 Professional PTZ Camera Ghana

Introducing the AVer PTZ231 Ghana, an innovative PTZ camera designed to revolutionize your streaming experience. With its state-of-the-art features, this camera empowers you with unparalleled control over your content creation. Immerse yourself in the world of professional-grade streaming, boasting stunning Full HD 1080p outputs at an impressive 60 frames per second. But that’s not all – with a remarkable 30X optical zoom, the AVer PTZ231 Ghana ensures that every detail is captured with precision, whether you’re zooming in on a distant subject or capturing the grandeur of a wide-angle shot.

But what truly sets Aver PTZ231 Ghana camera apart is its cutting-edge SmartShoot feature, a game-changer in the world of livestreaming. With SmartShoot, the camera intelligently adjusts focus, exposure, and framing to ensure that every moment is captured flawlessly, allowing you to focus on delivering captivating content without worrying about technicalities.

Elevate your livestream performances to new heights and captivate your audience with the AVer PTZ231 Ghana. Whether you’re a seasoned professional or just starting out, this camera is your ticket to creating unforgettable streaming experiences.

Specifications

Camera

• Image Sensor
  • 1/2.8” 1080p Exmor CMOS
• Effective Picture Elements
  • 2 Megapixels

• Output Resolutions
  • 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination
  • 0.5 lux (IRE50, F1.6, 30fps)

• S/N Ratio
  • ≥ 50 dB
• Gain
  • Auto, Manual

• TV Lines
  • 1000 (Center)
• Shutter Speed
  • 1/1 to 1/32,000 sec

• Exposure Control
  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance
  • Auto, Manual, ATW, One Push

• Optical Zoom
  • 30X
• Digital Zoom
  • 1X

• Total Zoom
  • 30X
• Viewing Angles
  • DFOV: 69.2° (Wide) to 2.8° (Tele)
  • HFOV: 62.3° (Wide) to 2.5° (Tele)
  • VFOV: 37.3° (Wide) to 1.4° (Tele)

• Focal Length
  • f = 4.5 mm (Wide) to 135 mm (Tele)
• Aperture (Iris)
  • F = 1.8 (Wide) to 4.7 (Tele)

• Minimum Working Distance
  • 0.1 m (Wide)
  • 1.2 m (Tele)
• Pan / Tilt Angles
  • Pan : ±170°
  • Tilt : +90° / -30°

• Pan / Tilt Speed (Manual)
  • Pan : 0.1° to 100° / sec
  • Tilt : 0.1° to 100° / sec
• Preset Speed
  • Pan : 200° / sec
  • Tilt : 200° / sec

• Preset Positions
  • 10 (IR)
  • 256 (RS-232, RS-422, IP)
• Camera Control – Interfaces
  • RS-232 (DIN8)
  • RS-422 (RJ45)
  • IP

• Camera Control – Protocols
  • VISCA (RS-232 / RS-422 / IP)
  • PELCO-D & PELCO-P (RS-232 / RS-422)
  • CGI (IP)
  • ONVIF
• Image Processing
  • Noise Reduction (2D / 3D)
  • Flip
  • Mirror

• Power Frequencies
  • 50 Hz, 60 Hz

AI Function

• Mode
  • SmartShoot

Audio

• Channels
  • 2ch Stereo
• Codecs
  • AAC-LC

Interface

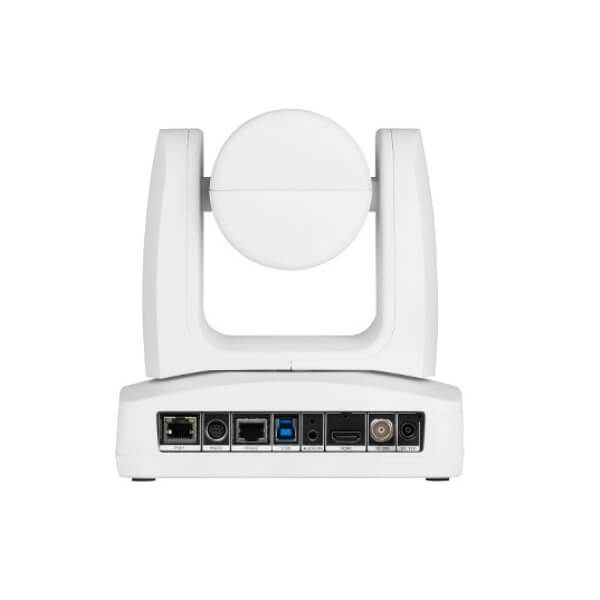

• Video Outputs
  • 3G-SDI, HDMI, IP, USB
• Audio Outputs
  • 3G-SDI, HDMI, IP, USB

• Audio Inputs
  • MIC in, Line in

General

• Power Requirement
  • AC 100 – 240V to DC 12V/2A
• Power Consumption
  • 19W

• PoE
  • PoE+
• Dimensions (W x H x D)
  • 180.0 x 192.0 x 145.0 mm

• Net Weight
  • 2.0 (±0.1) kg
• Application
  • Indoor

• Tally Lamp
  • Yes
• Security
  • Kensington Slot

• Remote Control
  • Infrared
• Operating Conditions
  • Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%

• Storage Conditions
  • Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%

IP Streaming

• Resolution
  • 1080p 60fps
• Network Video Compress Formats
  • H.264, H.265, MJPEG

• Maximum Frame Rate
  • 1080p 60fps
• Bit-Rate Control Modes
  • VBR, CBR (selectable)

• Range of Bit-Rate Setting
  • 512 Kbps to 120 Mbps
• Network Interface
  • 10 / 100 / 1000 Base-T

• Multi-Stream Capability
  • 4
  • 1080p 60fps: RTSP, HDMI, USB & 3G-SDI
• Network Protocols
  • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP

• NDI^®HX
  • License Upgrade to NDI HX2 available in 2024Q2

USB

• Connector
  • USB 3.1
• Video Formats
  • MJPEG, YUY2

• Maximum Video Resolution
  • 1080p
• USB Video Class (UVC)
  • UVC 1.1

• USB Audio Class (UAC)
  • UAC 1.0

Web UI

• Live Video Preview
  • Yes
• Camera PTZ Control
  • Pan, Tilt, Zoom, Focus, Preset Control

• Camera / Image Adjustment
  • Exposure, White Balance, Picture
• Network Configuration
  • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search and Configuration Tool
  • Support Windows^® 7 or later
• PTZ Management
  • Support Windows^® 7 or later

• PTZ Control Panel
  • Supports iOS & iPadOS^® 11 or later
• PTZ Link
  • Supports Windows^® 7 or later, macOS^® 10.14 or later

• OBS Plugin for PTZ Cameras
  • Supports Windows^® 8 or later, macOS^® High Sierra v10.13 or later
• CaptureShare
  • Supports Windows^® 7 or later, macOS^® 10.14 or later

Warranty

• Camera
  • 5 Years
• Accessories
  • 1 Year

• Package Contents
  • Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate (x2), M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Tie (x4)

• Optional Accessories
  • AVer CL01 PTZ Camera Controller, L-Type Wall Mount
