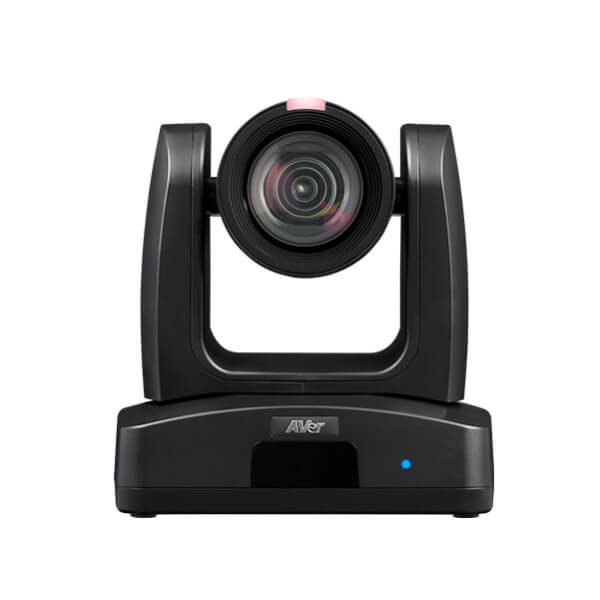

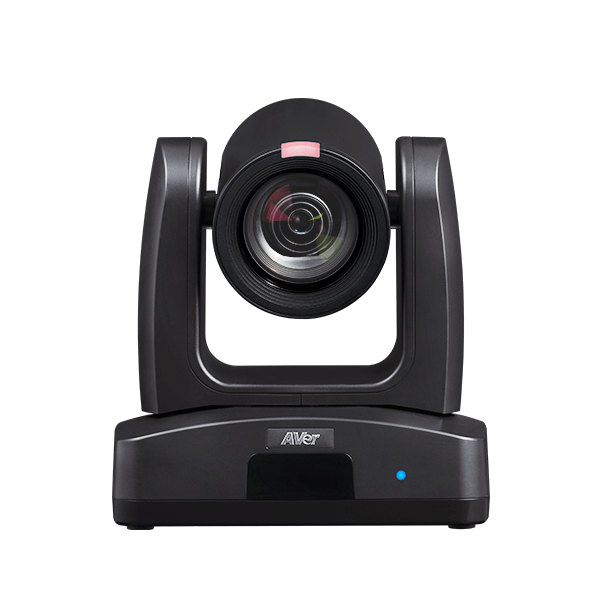

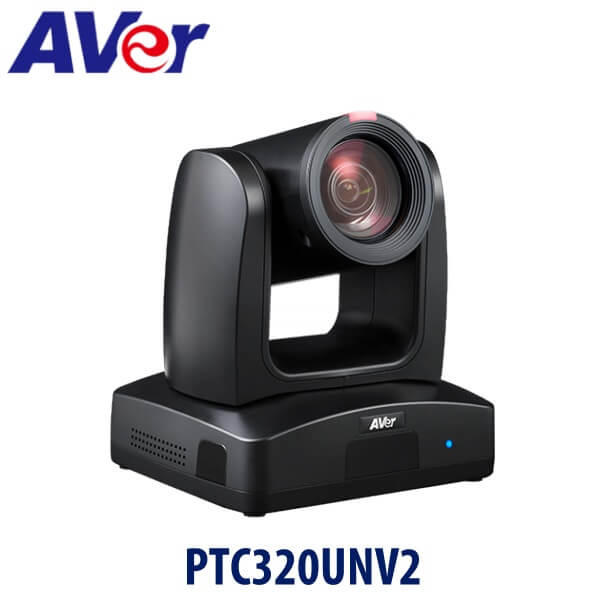

Aver ptc320unv2 AI Auto Tracking PTZ Camera Ghana

The Aver ptc320unv2 ghana AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the Aver ptc320unv2 ghana features in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking, thanks to Human Detection processing. Combine the 21X Optical Zoom lens and 4K resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Your exciting journey of audio and video capturing starts here!

Features

Zone Mode

The Aver ptc320unv2 ghana has Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.

Hybrid Mode

Hybrid Mode provides the utmost freedom of movement for performing artists. Use preset areas for segment tracking to have the camera automatically snap to a full view of each preset location as the artist moves between it. If the artist leaves the preset areas, the camera seamlessly transitions to tracking mode and follows the artist wherever they go.

Click & Track

Redirect focus in an instant with the Aver ptc320unv2 ghana. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via remote control or Web UI.

Human Detection AI

Welcome AVer’s most advanced AI tool yet—Human Detection. This highly accurate processing function enables Aver ptc320unv2 ghana to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.

Specifications

Camera

• Image Sensor
  • 1/2.8″ 4K Exmor CMOS
• Effective Picture Elements
  • 8 Megapixels
• Output Resolutions
  • 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• Minimum Illumination
  • 5 lux (IRE50, F1.6, 30fps)
• S/N Ratio
  • ≥ 50dB
• Gain
  • Auto, Manual
• TV Lines
  • 1400 (Center/Wide)
• Shutter Speed
  • 1/1 to 1/32,000 sec
• Exposure Control
  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance
  • Auto, Manual, ATW, One Push
• Optical Zoom
  • 21X
• Digital Zoom
  • 12X
• Total Zoom
  • 252X
• Viewing Angles
  • DFOV : 66.4° (Wide) to 3.3° (Tele)
  • HFOV : 52.26° (Wide) to 2.66° (Tele)
  • VFOV : 41.26° (Wide) to 2° (Tele)
• Focal Length
  • f = 5.3 mm (Wide) to 110 mm (Tele)
• Aperture (Iris)
  • F = 1.6 (Wide) to 3.8 (Tele)
• Minimum Working Distance
  • 5 m (Wide), 1.5m (Tele)
• Pan / Tilt Angles
  • Pan : ±170°, Tilt : +90° / -30°
• Pan / Tilt Speed (Manual)
  • Pan : 0.1° to 100° /sec, Tilt : 0.1° to 100° /sec
• Preset Speed
  • Pan : 200° /sec, Tilt : 200° /sec
• Preset Positions
  • 10 (IR), 255 (RS-232, RS-422, IP)
• Camera Control – Interfaces
  • RS-232 (DIN8), RS-422 (RJ45), IP
• Camera Control – Protocols
  • VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
• Image Processing
  • Noise Reduction (2D / 3D), Flip, Mirror
• Power Frequencies
  • 50Hz, 60Hz

AI Auto Tracking Functions

• Tracking Modes
  • Presenter Mode, Zone Mode, Hybrid Mode

Privacy Protection Mechanism

• Protection Mode
  • Sleep Mode

Audio

• Channels
  • 2ch Stereo
• Codecs
  • AAC-LC, PCM

Interface

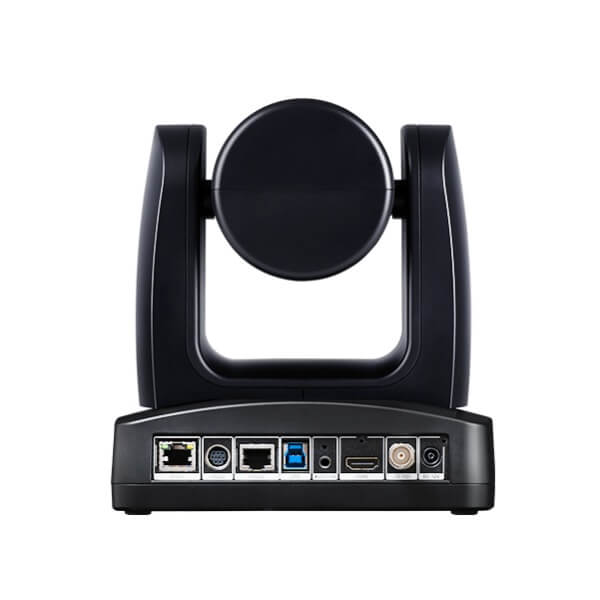

• Video Outputs
  • 3G-SDI, HDMI, IP, USB
• Audio Outputs
  • 3G-SDI, HDMI, IP, USB
• Audio Inputs
  • MIC in, Line in

General

• Power Requirement
  • AC 100 – 240V to DC 12V/5A
• Power Consumption
  • 19W
• PoE
  • PoE+
• Dimensions (W x H x D)
  • 0 x 192.0 x 145.0 mm
• Net Weight
  • 0 (±0.1) kg
• Application
  • Indoor
• Tally Lamp
  • Yes
• Security
  • Kensington Slot
• Remote Control
  • Infrared
• Operating Conditions
  • Temperature : 0°C to +40°C ; Humidity : 20% to 80%
• Storage Conditions
  • Temperature : -20°C to +60°C ; Humidity : 20% to 95%

IP Streaming

• Resolution
  • 4K 30fps
• Network Video Compress Formats
  • 264, H.265, MJPEG
• Maximum Frame Rate
  • 4K 30fps
• Bit-rate Control Modes
  • VBR, CBR (selectable)
• Range of Bit-Rate Setting
  • 512 Kbps to 32 Mbps
• Network Interface
  • 10 / 100 / 1000 Base-T
• Multi-Stream Capability
  • 2 (RTSP / Web Page), 4K 30fps (max.)
• Network Protocols
  • IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
• NDI |HX Capability
  • License Upgrade

USB

• Connector
  • USB 3.1
• Video Formats
  • MJPEG, YUY2
• Maximum Video Resolution
  • 2160p
• USB Video Class
  • UVC 1.1
• USB Audio Class
  • UAC 1.0

Web UI

• Live Video Preview
  • Yes
• Camera PTZ Control
  • Pan, Tilt, Zoom, Focus, Preset Control
• Camera / Image Adjustment
  • Exposure, White Balance, Picture
• Network Configuration
  • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search & Configuration Tool
  • Support Windows 7 or later
• PTZ Management
  • Support Windows 7 or later
• PTZ Control Panel
  • Supports iOS & iPadOS 11 or later
• PTZ Link
  • Support Windows 7 or later, macOS 14 or later
• OBS Plugin for PTZ Cameras
  • Support Windows 8 or later, macOS  High Sierra v10.13 or later
• CaptureShare
  • Support Windows 7 or later, macOS 14 or later

• Package Contents
  • Camera, Drilling Paper, Ceiling Mount Bracket (x2) Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4″-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
