Description

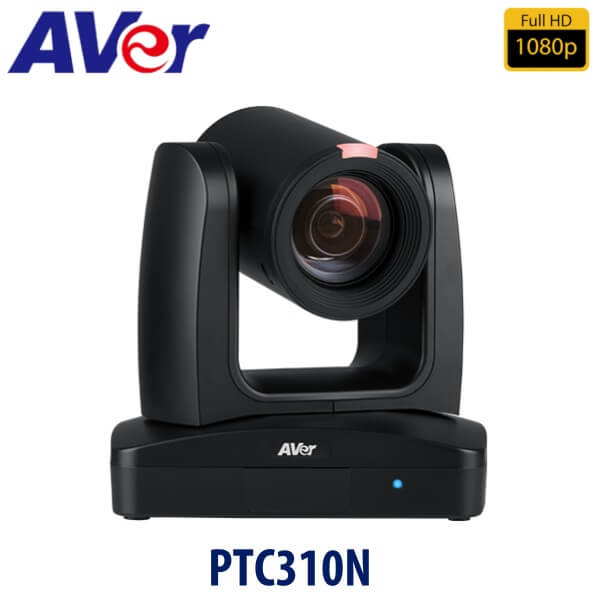

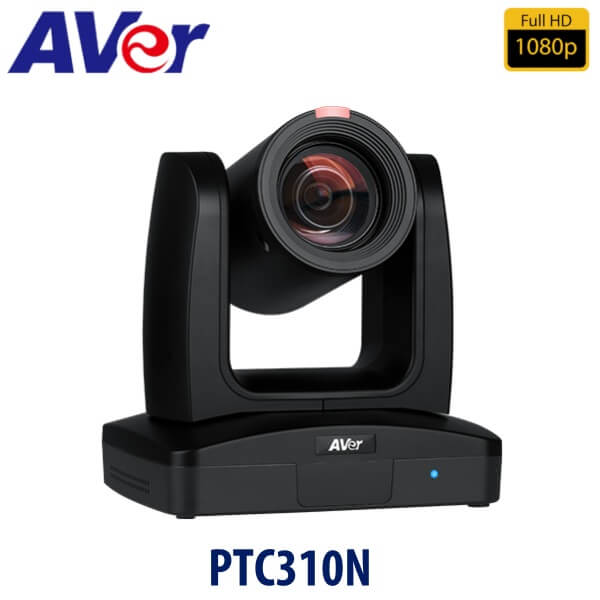

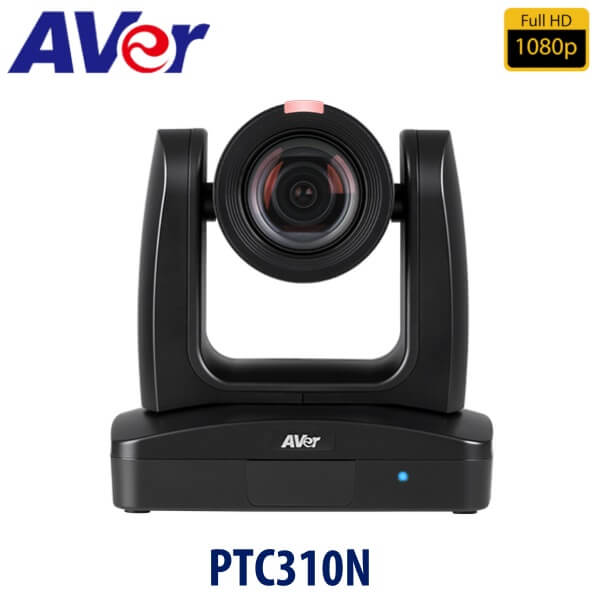

Aver PTC310N AI Auto Tracking NDI®|HX PTZ Camera

The Aver PTC310N AI Auto Tracking NDI®|HX PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC310N features in-house AI functions like Presenter Mode and Zone Mode auto tracking, thanks to Human Detection processing. Combining the 12X optical zoom lens and Full HD 1080p resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. The Aver PTC310N AI Auto Tracking NDI®|HX PTZ Camera is equipped with 4K resolution providing 4K Output Resolution with ultra-precise auto tracking. The PTC310N also features a Sony sensor that maintains a truly impressive video performance through every frame of your production. The camera is equipped with 12X Optical Zoom camera reaches an incredible zoom 24X also with 2X Sensor Zoom. The Aver PTC310N AI Auto Tracking PTZ Camera, complies with the most rigorous NDI standards to deliver the lowest latency for on-air camera control, switching, and streaming via IP connection.

Interact with PTZ camera features, the Aver PTC310N AI Auto Tracking NDI®|HX PTZ Camera has Human accurate processing function that enables PTC310N to easily detect and capture human forms and moving objects in seconds without missing targets. Also you can redirect focus in an instant with the PTC310N by simply clicking on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via both remote control and intuitive Web UI. Aver PTC310N AI Auto Tracking NDI®|HX PTZ Camera packs several video conferencing features including; Presenter Mode allowing presenters to have flexibility to leave the stage and interact with the audience. Also, Zone Mode enhances your ability to capture content on multiple displays. While Hybrid Mode provides the utmost freedom of movement for performing artists.

Key Features

Full NDI®|HX for Greater Reach

The Aver PTC310N complies with the most rigorous NDI standards to deliver the lowest latency for on-air camera control, switching, and streaming – all via IP connection. It makes live broadcasts faster and simpler, allowing users to stream for larger audiences without complicated and expensive equipment. Design efficient and flexible IP workflows at will.

Full HD 1080p Output Resolution

Aver PTC310N AI Auto Tracking NDI®|HX PTZ Camera is equipped with Full HD 1080p resolution, that provides ultra-precise auto tracking. The PTC310N also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.

12X Optical Zoom & 2X Sensor Zoom

The Aver PTC310N AI Auto Tracking NDI®|HX PTZ Camera has incredible 24X (12X optical and 2X sensor zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC310N.

Human Detection AI

Aver PTC310N AI Auto Tracking NDI®|HX PTZ Camera packs advance Human Detection. This highly accurate processing function enables PTC310N to easily detect and capture human forms and moving objects in seconds.

Click & Track

Aver PTC310N AI Auto Tracking NDI®|HX PTZ Camera, can redirect focus. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via remote control or Web UI.

Presenter Mode

With Aver PTC310N AI Auto Tracking NDI®|HX PTZ Camera, track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.

Zone Mode

Aver PTC310N AI Auto Tracking NDI®|HX PTZ Camera has Zone Mode that enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.

Hybrid Mode

Hybrid Mode provides the utmost freedom of movement for performing artists. Preset effective areas for Zone Tracking in advance, and once you step into those areas, you will be targeted together with the content. When you are outside, you are just like in Presenter

Aver PTC310N Camera Specifications

· Camera

Image Sensor
- 1/2.8″ 1080p Exmor CMOS
Effective Picture Elements
- 2 Megapixels
Output Resolutions
- 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination
- 4 lux (IRE50, F1.6, 30fps)
S/N Ratio
- ≥ 50dB
Gain
- Auto, Manual
TV Line
- 900 (Center)
Shutter Speed
- 1/1 to 1/32,000 sec
Exposure Control
- Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
- Auto, Manual
Optical Zoom
- 12X
Digital Zoom
- 12X
Sensor Zoom
- 2X
Viewing Angles
- DFOV : 78° (Wide) to 7° (Tele)
- HFOV : 70° (Wide) to 6° (Tele)
- VFOV : 42° (Wide) to 3° (Tele)
Focal length
- f = 3.9 mm (Wide) to 46.8 mm (Tele)
Aperture (Iris)
- F = 1.6 (Wide) to 2.8 (Tele)
Minimum Working Distance
- 3 m (Wide), 1.5m (Tele)
Pan/Tilt Angles
- Pan : ±170°, Tilt : +90° / -30°
Pan/Tilt Speed (Manual)
- Pan : 0.1° to 100° /sec, Tilt : 0.1° to 100° /sec
Preset Speed
- Pan : 200° /sec, Tilt : 200° /sec
Preset Positions
- 10 (IR), 256 (RS-232)
Camera Control – Interfaces
- RS-232 (DIN8), RS-422 (RJ45), IP
Camera Control – Protocols
- VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
Image Processing
- Noise Reduction (2D / 3D), Flip, Mirror
Power Frequencies
- 50Hz, 60Hz

· AI Auto Tracking Functions

Tracking Modes
- Presenter Mode, Zone Mode

· Audio

Channels
- 2ch (Stereo)
Codecs
- AAC-LC (48 / 44.1 / 32 / 24K), G.711, PCM (8K)
Sample Rates
- 48 / 44.1 / 32 / 24 / 16 / 8 KHz

· Interface

Video Outputs
- 3G-SDI, HDMI, IP, USB
Audio Outputs
- 3G-SDI, HDMI, IP, USB
Audio Inputs
- MIC in, Line in

· General

Power Requirement
- AC100V-AC240V to DC12V/5A
Power Consumption
- 18W
PoE
- PoE+
Dimensions (W x H x D)
- 0 x 183.5 x 145.0 mm
Net Weight
- 7 (±0.1) kg
Application
- Indoor
Tally Lamp
- Yes
Security
- Kensington slot
Remote Control
- Infrared
Operating Conditions
- Temperature: 0°C to +40°C ; Humidity: 20% to 80%
Storage Conditions
- Temperature: -20°C to +60°C ; Humidity: 20% to 95%

· IP Streaming

Resolution
- 1080p 60fps
Network Video Compress Formats
- 264, H.265, MJPEG
Maximum Frame Rate
- 1080p 60fps
Bit-rate Control Modes
- VBR, CBR (selectable)
Range of Bit-Rate Setting
- 512 Kbps to 32 Mbps
Network Interfaces
- 10/100/1000 Base-T
Multi-Stream Capability
- 2 (RTSP / Web Page), 1080p 60fps (max.)
Network Protocols
- IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
NDI^®|HX Capability
- Yes (NDI HX2)

· USB

Connector
- USB 3.0
Video Formats
- MJPEG, YUY2
Maximum Video Resolution
- 1080p
USB Video Class
- 1
USB Audio Class
- 0

· Web UI

Live Video Preview
- Yes
Camera PTZ Control
- Pan, Tilt, Zoom, Focus, Preset Control
Camera/Image Adjustment
- Exposure, White Balance, Picture
Network Configuration
- DHCP, IP Address, Gateway, Subnet Mask, DNS

· Software Tools

IP Search & Configuration Tool
- Support Windows^®7 or later
PTZ Management
- Support Windows^®7 or later
PTZ Control Panel
- Support iPadOS^®v11 or later
CaptureShare
- Support Windows^®7 or later

· Warranty

Camera
- 3 Years
Accessories
- 1 Year
Package Contents
- Camera, Remote Control, Power Adapter, Power Cord, Cable Ties (x 5), Screws (x 10), Cable Fixing Plates (x 2), Ceiling Mount Brackets (x 2), Quick Start Guide
Optional Accessories
- AVer CL01 PTZ Camera Controller, L-Type Ceiling Mount, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable
