Description

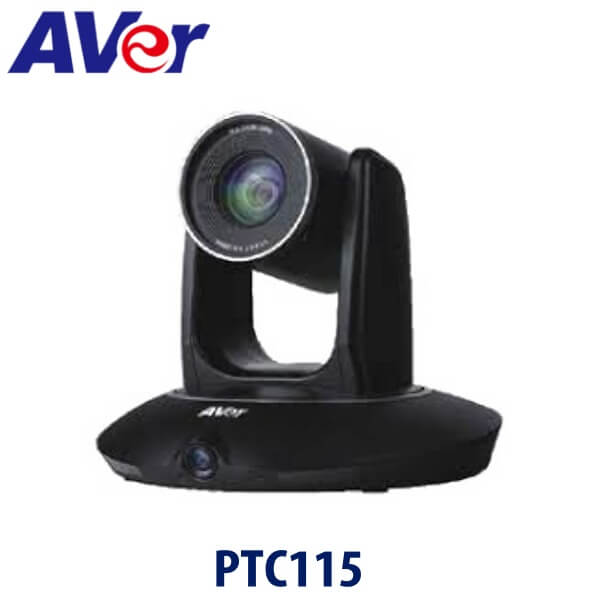

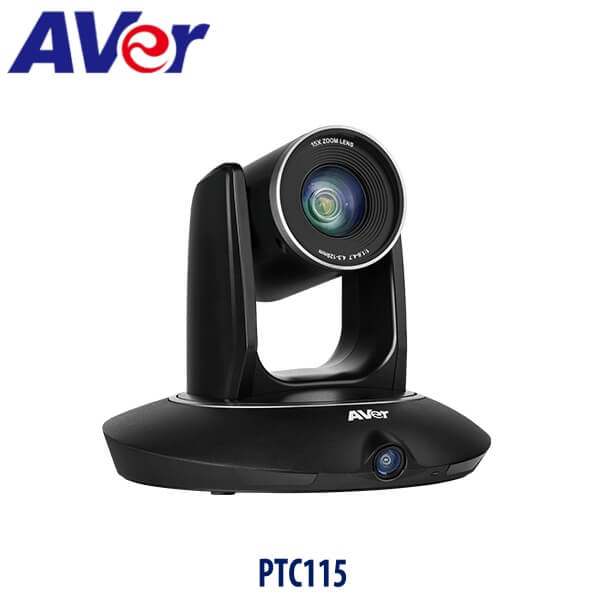

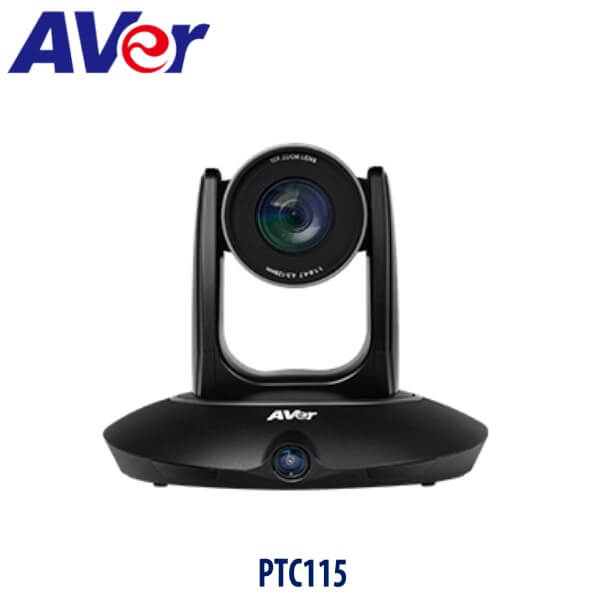

Aver PTC115 Auto Tracking Camera Ghana

The Aver PTC115 Auto Tracking Camera features Dual Lens Camera. It is equipped with 15X optical zoom and 120° panoramic FOV that provides Full HD 1080p video resolution. The Aver PTC115 Perfectly suits the needs of governmental institutions, educational organizations, and enterprises with affordable solution for courses and lectures, keynote speeches, and employee trainings. Share more with your audience through real-time streaming; with no operator required and easy-to-use user interface, you can reduce costs and achieve limitless distance learning. Moreover, enjoy three Al Tracking modes with Aver PTC115 Auto Tracking Camera. The modes includes; Wide Area tracking mode following the presenter even when obscured by other objects. Stage tracking fluidly targets specific subject across the stage. While Segment tracking mode allows setting up to four fields and capture displays rather than presenter alone.

Key Features

Up to 15X Optical Zoom

Featuring a PTZ camera with a 15X optical zoom, the PTC115 sports a 350° pan and 120° tilt radius makes it ideal for classrooms or meeting spaces. Precisely track the moving presenter and distinctly display important details with full HD 1080p 60fps video and a powerful remote autofocus function. Capture the full classroom experience with the most realistic and dynamic image quality.

No Extra Devices Needed

The Aver PTC115 Auto Tracking Camera boasts of exclusive algorithms enabling the camera to automatically track a presenter’s face and movements. Speakers are free to walk around the classroom without wearing any accessories to give guidance and solve problems for students, ensuring a quality education. Without need to worry about the connection restrictions, charging security, or added expense of a wearable device, you can focus on easily building zero-distance interactive teaching.

Dual Lens Design

The Aver PTC115 Auto Tracking Camera dual lens design, integrates a PTZ camera with a super-wide 120° FOV secondary camera to track the speaker and capture a panoramic view of the classroom at the same time. Also, enable and adjust PIP mode while capturing to simultaneously view the speaker and the rest of the classroom. Clearly present every detail, and never miss a teachable moment.

Multi-Presenter Detection

The Aver PTC115 Auto Tracking Camera is equipped with Multi-Presenter Detection technology that accurately tracks when there are two or more people in the effective area. This feature allows teachers to conduct group discussions, quiz contests, interactive games, and more. Use one camera to capture every detail of every learning situation.

Wide Area Tracking

With advanced targeting algorithms, the PTC115’s Wide Area Tracking enables tracking of target everywhere. The Aver PTC115 Auto Tracking Camera provides extremely high accuracy tracking that is widely recognized as a performance leader in the auto tracking market. With fluid and accurate tracking your target has the freedom to leave the stage to interact with crowds or students all while being continuously captured, even if obscured by people or objects. The PTC115 lets you master your recording and capture every brilliant moment.

Stage Tracking

The Aver PTC115 Auto Tracking Camera allow users to experience high-quality, hands-free video streaming and recording with Stage Tracking. Fluidly track your target with Effective Zone settings allowing for up to 8 blocking zones to capture strategic, professional-looking video.

Segment Tracking

Segment Tracking enhances your ability to capture content on multiple displays. The Aver PTC115 Auto Tracking Camera allow you to create up to 4 Content Zones to perfectly capture the content on display rather than the presenter.

Aver PTC115 Specifications

·         PTZ Camera

• Image Sensor
  • 1/2.8″ 60fps low lux CMOS sensor
• Effective Picture Elements
  • 2 Megapixels
• Minimum Illumination
  • IRE50: 0.47 lux (60fps)
  • IRE50: 0.23 lux (30fps)
• Optical Zoom
  • 15X
• Digital Zoom
  • 12X
• Lens Focal Length
  • f = 4.3 mm (wide) – 64.5 mm (tele)
• Iris
  • F=1.6 (wide) – 4.2 (tele)
• View of Angle
  • DFOV = 76° (wide) – 5° (tele)
• Output Resolution
  • Auto
  • 1080p/60
  • 1080p/50
  • 1080i/60
  • 1080i/50
  • 1080p/30
  • 720p/60
• Preset Number
  • 10 (IR Remote)
  • 256 (RS232)
• Minimum Working Distance
  • 1m at wide-end
  • 2m at tele-end (15X)
• White Balance
  • Auto
  • Manual (2500 – 10000)
• Gain
  • Auto
  • Manual
• Electronic Shutter
  • 1/5 s to 1/32,000 s
• Backlight Compensation (BLC)
  • Off
  • On
• Exposure
  • Auto
  • Shutter Priority
  • IRIS Priority
  • Manual
• Noise Reduction
  • Off
  • Low
  • Medium
  • High
• Frequency
  • Auto
  • 50 Hz
  • 60 Hz
• S/N Ratio
  • > 50db
• Horizontal Resolution
  • Center: 800 TV Lines
  • Corner: 600 TV Lines

·         Pan Tilt Parameter

• Pan Rotation
  • -175° (left) +175° (right)
• Tilt Rotation
  • -30° (down) +90° (up)
• Pan Control Speed
  • 2° – 50° /sec
• Tilt Control Speed
  • 2° – 50° /sec
• Preset Speed
  • Pan: 160° /sec
  • Tilt: 160° /sec

·         Panoramic Camera (Full View)

• Image Sensor
  • 1/2.8″ 60fps low lux CMOS sensor
• Effective Picture Elements
  • 2 Megapixels
• Output Resolution
  • Auto
  • 1080p/60
  • 1080p/30
  • 720p/60
• Lens Focal Length
  • 12 mm
• White Balance
  • Auto
• Exposure
  • Auto
• FOV
  • DFOV = 120°
  • HFOV = 110°
  • VFOV = 74.5°

·         Interface / Streaming / Protocol

• Video Output
  • 3G-SDI *2
  • HDMI *1
  • IP (RJ45)
• Video Output Capability
  • up to 1080p/60fps
• Remote Control
  • RS232 (via optional DB9 to DIN6 adapter)
  • IP (RJ45)
• Baud Rate
  • 115200/9600/4800/2400 bps
• Network Interface
  • 10/100/1000 Base-T
  • Support Wake-on-LAN
• Network Video Compress Format
  • 264
• Network Protocols
  • RTSP
  • RTMP
  • ONVIF
• IP Video Streaming
  • Dual Video Streaming (PTZ and panoramic view)
• Control Protocols
  • VISCA
  • Pelco-D
  • Pelco-P
• Power
  • Power adapter DC 12V

·         System

• Remote IR
  • IR sensor
• Audio
  • PCM
  • AAC-LC
  • 711
• LED
  • Power (blue = on, red = off)
• Security
  • Kensington slot
• Infrared Remote
  • Receiver on front of camera
• Power Adapter
  • AC 110V – AC 220V to DC 12V/5A
• Consumption
  • 24 W (Max.)
• Operating Temperature
  • 0°C – +40°C
• Operation Humidity
  • 20% ~80%
• Storage Temperature
  • -20°C – +60°C
• Storage Humidity
  • 20% – 95%
• Dimensions
  • L = 201 mm
  • W = 210 mm
  • H= 176 mm
• Weight
  • 75 kg
• Application
  • Indoor
• Accessories
  • Remote control
  • 12V/5A power adapter
  • DB9 to DIN6 adapter
  • Quick guide

* Specifications may vary depending on location and are subject to change without notice.
