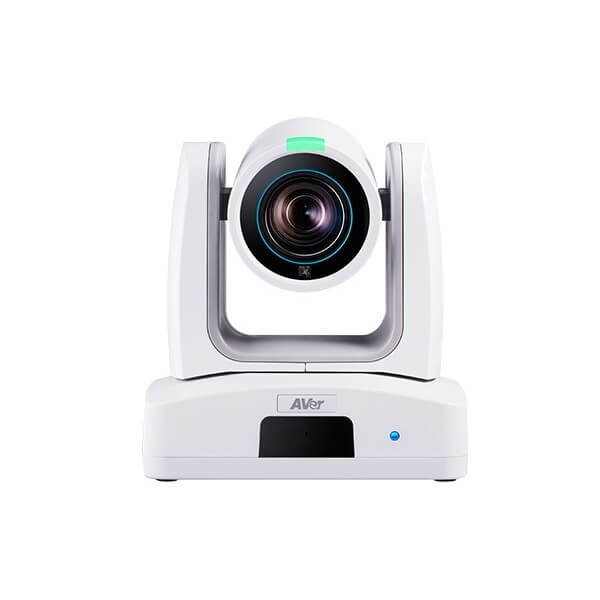

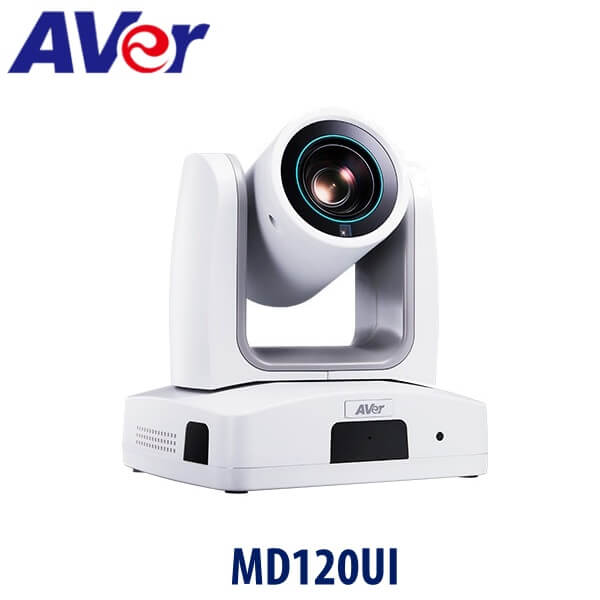

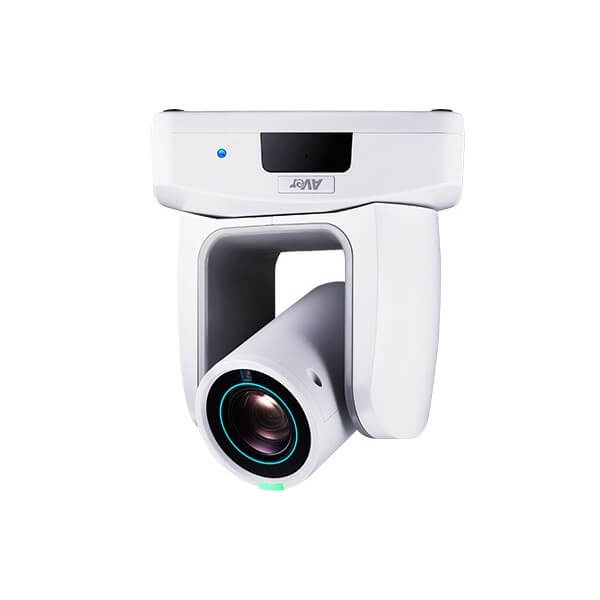

AVer MD120UI Medical Grade PTZ Camera Ghana

The groundbreaking AVer MD120UI Ghana stands as the pioneering PTZ camera meticulously crafted for the sole purpose of patient monitoring. Infused with cutting-edge AI advancements, it revolutionizes the landscape of patient care, empowering healthcare professionals with effortless surveillance capabilities. With its remarkable 20X optical zoom and unparalleled 4K imaging prowess, coupled with the added advantage of IR night vision functionality, it ensures an unblemished visual monitoring experience, leaving no corner unobserved. This AVer MD120UI Ghana is an innovative solution facilitates round-the-clock patient surveillance, delivering unmatched clarity and precision, thereby fostering an environment of heightened vigilance and patient-centric care.

Specifications

Camera

• Image Sensor
  • 1/2.8′ CMOS
• Effective Picture Elements
  • 8 Megapixels

• Output Resolutions
  • Resolutions: 4K / 1080p / 720p
  • Frame Rates: 60 / 59.94 / 50 / 30 / 29.97 / 25
• Minimum Illumination
  • 0.5 lux (50 IRE, F1.6, Max. AGC, 1/30)

• S/N Ratio
  • ≥ 50 dB
• Gain
  • Auto, Manual

• TV Lines
  • 1000 (Center / Wide)
• Shutter Speed
  • 1/1s to 1/10,000s

• Exposure Control
  • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• White Balance
  • Auto / Manual

• Optical Zoom
  • 20X
• Digital Zoom
  • 1X

• Total Zoom
  • 20X
• Viewing Angles
  • DFOV: 69.2° (Wide) to 4.1° (Tele)
  • HFOV: 62.3° (Wide) to 3.6° (Tele)
  • VFOV: 37.7° (Wide) to 2.1° (Tele)

• Focal Length
  • f = 4.5 mm (Wide) to 90 mm (Tele)
• Aperture (Iris)
  • F = 1.8 (Wide) to 4.7 (Tele)

• Minimum Working Distance
  • 0.1 m (Wide) , 1.2 m (Tele)
• Pan / Tilt Angles
  • Pan: ±170°, Tilt: +90° / -30°

• Pan / Tilt Speed (Manual)
  • Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec
• Preset Speed
  • Pan: 200° / sec, Tilt: 200° / sec
• Preset Positions
  • 10 (IR), 256 (RS-232, RS-422, IP)
• Camera Control – Interfaces
  • RS-232 / RS-422 / Ethernet
• Camera Control – Protocols
  • VISCA (RS-232 / RS-422 / IP), CGI (IP)
• Image Processing
  • Mirror / Flip / Freeze / WDR / BLC
• Power Frequencies
  • 50 Hz, 60 Hz

AI Function

• Mode
  • Eye Tracking

Privacy

• Protection Mode
  • Privacy Mode, Privacy Indicator

General

• Power Requirement
  • 12V
• Power Consumption
  • 24W

• PoE
  • PoE+ (IEEE802.3at)
• Dimensions
  • 180(W) x 145(D) x 183.5(H) mm

• Net Weight
  • 1.7 ± 0.1 kg
• Housing Material
  • Anti-UV

• Application
  • Indoor
• IR Night Vision
  • Yes

• Security
  • Kensington Slot
• IR Remote Control
  • Yes

• Operating
  • Temperature: 0 °C to +40 °C
  • Humidity: 20% to 80%
• Storage Conditions
  • Temperature: -20 °C to +60 °C
  • Humidity: 20% to 95%

Audio

• Channels
  • 2ch Stereo
• Codec
  • AAC-LC (48K)

• Built-in Microphone
  • 1 (Omni-Directional)

Interface

• Video Outputs
  • HDMI, IP, USB
• Audio Outputs
  • HDMI, IP, USB

• Audio Inputs
  • N/A

IP Streaming

• Resolution
  • 4K 60fps
• Network Video Compress Formats
  • H.264, H.265, MJPEG

• Maximum Frame Rate
  • 4K 60fps
• Bit-Rate Control Modes
  • VBR, CBR

• Range of Bit-Rate
  • 512Kbps to 64Mbps
• Network Interface
  • 10 / 100 / 1000 Base-T

• Multi-Stream Capability
  • 2 (RTSP / Web page), 4K 60fps Max.
• Network Protocols
  • IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP RTP/RTCP, RTSP, RTMP,VISCA over IP

USB

• Connector
  • USB 3.0 (Type-B)
• Video Formats
  • MJPEG

• Maximum Video
  • 2160p
• USB Video Class (UVC)
  • UVC 1.1

• USB Audio Class (UAC)
  • UAC 1.0

Web UI

• Live Video Preview
  • Yes
• Camera PTZ Control
  • Pan, Tilt, Zoom, Focus, Preset Control

• Camera / Image
  • Exposure, White Balance, Picture
• Network Configuration
  • DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search and Configuration Tool
  • Support Windows® 7 or later
• PTZ Management
  AVer ViewCare
  • Support Windows® 7 or later

• PTZ Control Panel
  • Supports iOS & iPadOS® 11 or later
• Camera Setting Tool
  • Supports Windows® 7 or later, macOS® 10.14 or later

Warranty

• Camera
  • 3 Years
• Accessories
  • 1 Year

• Package Contents
  • Camera, Drilling Paper, Ceiling Mount Bracket, QR Code Card, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), USB Cable (Type-B)
• Optional Accessories
  • AVer CL01 PTZ Camera Controller, L-Type Wall Mount
