Description

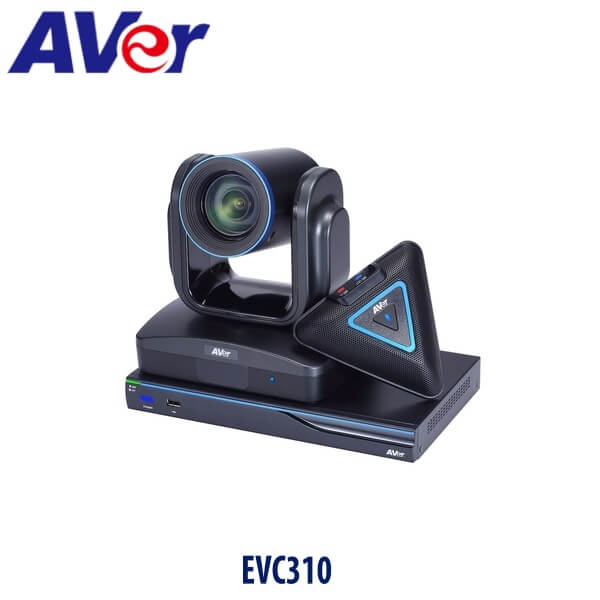

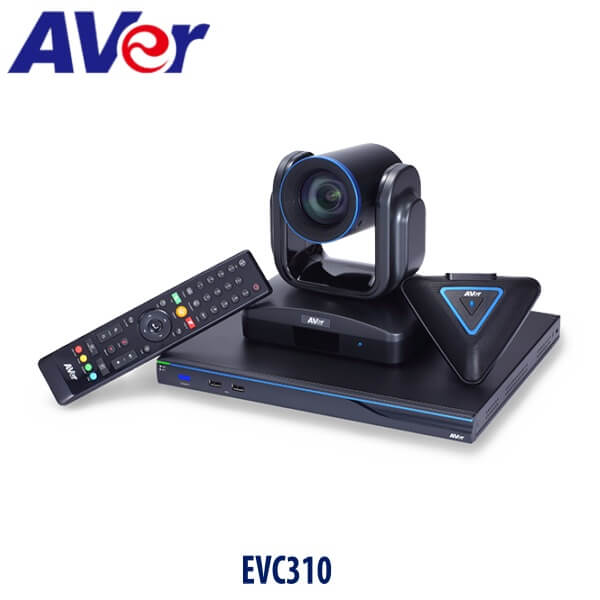

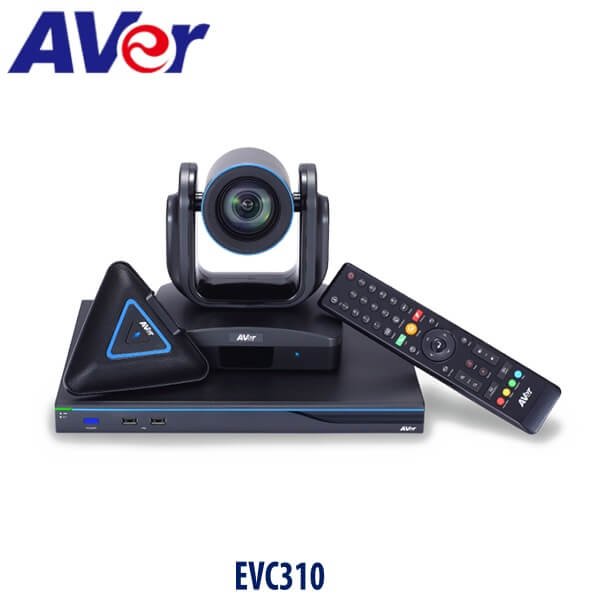

Aver EVC310 Ghana

The Aver EVC310 Multipoint System Ghana is affordable, 4-site, high performance MCU video conferencing system. The MCU video system features full 1080p 72° Wide-Angle HD camera and 12x Optical Zoom plus 1.5x Digital Zoom and multiple of IO ports. The Aver EVC310 boasts of patented, intelligent microphones that can be linked together to form a daisy chain so you can enjoy great audio reception in any size of conference room. Also, the MCU system allow you to record all your important meetings directly to a USB flash drive, even when you are offline.

Aver EVC310 packs advance features that can be utilized to add value to communication needs. The  AVer’s EZDraw collaborative annotation app allow users to access an impressive array of interactive tools. Moreover, Aver EVC310 Multipoint System users get connected to their PCs, laptops, tablets and smart phones via AVer’s EZMeetup. A software that Integrate with other VC systems, mobile and/or desktop solutions with or without cloud service subscriptions. Installing Aver EVc310 should not worry you as it does not require any set up costs.

key Features

1080p PTZ camera and 18x zoom

Aver EVC310 Multipoint System is equipped with 1080p 72° Wide-Angle HD camera and 12x Optical Zoom plus 1.5x Digital Zoom, to allow you enjoy clear video and audio that serve to enhance meetings by allowing participants to see body language and understand voice tone. By allowing impactful presentations, demonstrations, and reactions.

AVer’s EZMeetup software

Aver EVC310 Multipoint System allows real-time screen sharing via dual monitor support software. AVer’s EZMeetup software allow Aver EVC310 to integrate with other VC systems, mobile or desktop solutions without added fees. Simply plug in your USB flash drive to record meetings through the special record feature.

Annotation Capabilities

 EVC310 boasts of AVer’s EZDraw, a collaborative annotation app that opens up powerful business communication possibilities. Users at different sites can write text, make highlights or draw on the same document, providing an ideal solution for improving the flow of discussions and achieving optimal

Compatibility

Aver EVC310 Multipoint System has 2 Display Outputs, 1 Video Inputs, Remote API and RS232, the EVC310 that allows companies to easily and affordably expand their video communication capabilities with additional endpoints and multi-point systems compatible with other H.323 products and bridges. Connect your conference room to almost any mobile or desktop system in the world through cloud partners. Also use AVer EZMeetup or 3rd Party PC/Mac/iOS/Android app to join a meeting through your office

License upgradable to 6, 8 or 10 points

Aver EVC310 Multipoint System users can take advantage of license upgrade program to expand from up to 4-point communication to up to 10 points. By simply entering the upgrade license key you can conveniently upgrade your EVC310 to 6, 8 or 10 points and meet your company’s growing communication demands

Aver EVC310 Multipoint System Specifications

• Package Contents
  • Main system unit (codec)
  • The New eCam PTZ camera
  • EVC microphone array
  • IR remote control
  • Power supply (12V/5A)
  • VGA cable (3M)
  • Power cord (1.8M)
  • Camera cable (3M)
  • Microphone cable (5M)
  • Network cable (3M)
  • HDMI cable (3M)
  • Warranty card
  • Quick guide
• Communications
  • H.323, SIP standards, SIP TLS
  • 64Kbps~4Mbps
  • RJ45 network LAN (10/100/1000)
  • Manual bandwidth settings
• Camera/New eCam PTZ:
  • Pan/Tilt/Zoom camera
  • 2-megapixel CMOS sensor
  • 18X total zoom
  • +/-130° pan; +90°/-25° tilt
  • Field of view (H): 72°
  • Field of view (V): 43°
  • Field of view (Diagonal): 82°

• People Video Resolutions
  • HD1080p (1920 x 1080)
  • HD720p (1280 x 720)
  • 480p (848 x 480)
  • 4CIF (704 x 576)
  • CIF (352 x 288)
  • SIF (352 x 240)
  • All resolutions at 30fps
• Content Video Resolutions
  • Supported resolutions:
    • HD1080p (1920 x 1080)
    • WXGA+ (1680 x 1050)
    • SXGA (1280 x 1024)
    • WXGA (1280 x 768)
    • HD720p (1280 x 720)
    • XGA (1024 x 768)
    • SVGA (800 x 600)
    • D1 (720 x 480)
    • VGA (640 x 480)
  • Output resolutions:
    • HD1080p (1920 x 1080) up to 30fps
• Video Standards
  • H.264, H.264 HP, H.264 SVC, H.263+, H.263, H.261
  • H.239 dual video streams
  • BFCP content sharing

• Video Features
  • 3D Denoise
• Video Inputs
  • EVC new eCam camera
  • VGA
  • DVI (HDMI)
• Video Outputs
  • HDMI
  • VGA

• Audio Standards
  • G.711, G.722, G.728, G.722.1, G.722.1C, AAC-LD
• Audio Features
  • Automatic gain control (AGC)
  • Advanced noise reduction
  • Acoustic echo cancellation (AEC)
• Audio Inputs
  • EVC microphone daisy chain up to 4
  • DVI (HDMI)
  • Line-in (3.5 mm)

• Audio Outputs
  • HDMI
  • Line-out (3.5 mm)
• Other Supported Standards
  • H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
  • SRTP
• User Interface
  • Multiple layout styles
  • User-friendly OSD (supports 23 languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, Vietnamese)
  • Display/edit site name

• Network
  • 10/100/1000Mbps
  • NAT/firewall traversal
  • High Efficiency Lost Packet Recovery (HELPeR™)
  • API support via Telnet
  • Wake-on-LAN (WOL) support
  • IPv4 and IPv6 support
  • Network Test
  • QoS
• Security
  • AES (Advanced Encryption Standard) function (128-bit)
  • Password protection for system settings
  • Password protection for remote system management
• Web Management Tool
  • Remote management
  • Live monitoring
  • Firmware update
  • Phonebook download/upload/edit
  • Restore system settings
  • Export call history

• Value-Added Features
  • Meeting recording
    • In meeting and offline recording
    • save directly to USB flash drive
    • supports screen re-layout during playback
    • playback and file conversion via VCPlayer software (.mov/.mp4 format)
  • EZmeetup software/App
    • 30-day for free trial
    • Connect with H.264 video codec
    • Receive resolution up to full HD 1080p 30fps
    • Transmit resolution up to full HD 1080p 30fps
    • Compatible with firmware later than 10.06
    • Support content sharing, capture and recording
  • EZDraw App
    • Compatible with EVC multipoint systems
    • Import .JPG, .PNG, .GIF, and .BMP files
    • Export .PNG files
    • Maximum of 10 tablets can be connected
  • Speed dialing via hot keys (10 sets)
  • Camera presets (100 positions)
  • Network Time Protocol (NTP)
  • License upgrade to 6, 8, 10 points
  • Screen Share support
  • VC Link support
  • Snap-Shot
  • Group Calling
  • Supports SIP voice calls
• Power Supply
  • AC 100V~240V, 50/60Hz
  • Consumption: EIAJ 12V, 5A
• Environmental Data
  • Operation temperature: 0°C~40°C
  • Operation humidity: 20%~80%
  • Storage temperature: -20°C~60°C
  • Storage humidity: 20%~80%

• Physical Characteristics
  • Package dimensions: 376 x 300 x 243 mm
  • Package weight: 6.99kg (15.41lbs)
  • Main system (codec): 320 x 262.7 x 37.2 mm
  • New eCam PTZ camera: 180 x 144 x 184 mm
  • EVC microphone array: 131.9 x 118.6 x 25.5 mm
• Mobility software. (optional)
  • Supported devices:
    • Windows^® and Mac OS^®
    • iOS, Android phones and tablets
    • Windows 8 tablets
  • Other features:
    • Connect with H.264 and H.263+
    • Receive resolution up to full HD 1080p 30fps
    • Transmit resolution up to full HD 1080p 30fps
    • Compatible with EVC300/EVC900
    • Support content sharing
• Warranty
  • 3+2 years
