AVer EVC150 Ghana

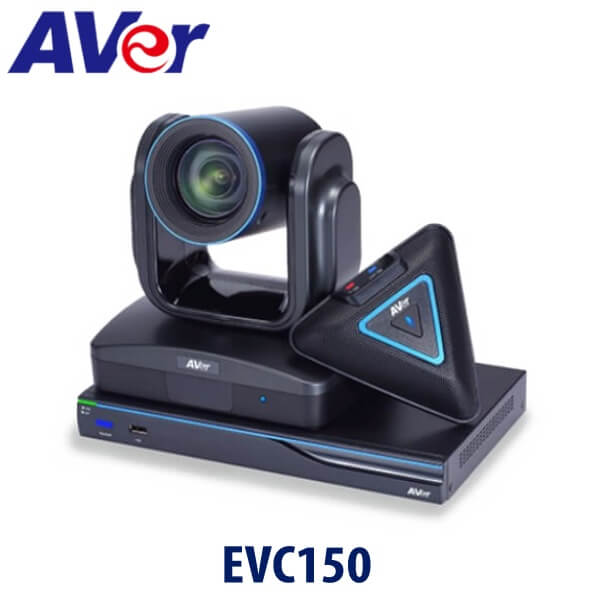

The AVer EVC150 Video Conferencing System is a high performing system offering small to medium-scale organizations a uniquely cost-effective full HD video conferencing solution. The EVC150 features real-time full HD video streaming and HD 720p content sharing along with a PTZ camera, microphone array, a sleek UI and a compact system design. The Aver EVC150 includes a codec, 1080p camera and HD microphone for point-to-point video conferencing. This bundle includes all the hardware you need to set up a video conferencing system. Easy to deploy and broadly interoperable, AVer EVC150 supports the SIP and H.323 communications protocols. The codec has a Gigabit Ethernet port for future-proof speed over your LAN.

AVer EVC150 Video Conferencing packs 2 MP camera with 12x optical zoom that produces 1080p30 Full HD video of people. It supports dual monitor set-up for expanded presentations. USB 2.0 ports let you effortlessly record meetings to a flash drives. The included wired microphone array is compact yet produces excellent audio. AES encryption protects your conversations. Whether for point-to-point conferencing, cloud-based video collaboration or hardware system integration, the standards-based EVC150 is the system of choice for savvy VC users.

Key Features

1080p Full HD for people and 720p HD for content sharing.
12x optical zoom + 1.5x digital = 18x total zoom.
Codec with Gigabit Ethernet is a powerful center for the system.
Support for H.323 and SIP communications standards give broad interoperability.
264 (HP, SVC) video codec support for detail while sipping bandwidth.
Wired microphone array with echo cancellation and noise reduction.
One-touch recording to USB flash drive.
Infrared remote control for simple use.

Better Collaborative System

AVer EVC150 Video Conferencing boasts of AVer’s new EZLive. This powerful application allows users to easily record video, livestream, and capture images during real-time video conferencing. EZLive is a free application that is available on all AVer USB cameras and makes them an even more effective collaboration tool.

Full HD video & HD content sharing

AVer EVC150 Video Conferencing allow you to experience natural, real-time video communication on one monitor at HD 1080p 30fps, while sharing presentation files, animation, visualizer images and more on another at HD 720p 30fps, creating a smooth, interactive video conferencing experience.

One-touch recording

AVer EVC150 Video Conferencing enable recording of video conferences directly to a USB flash drive, creating video archives and helping avoid post-meeting information loss. While also allowing you to play back recorded meetings using your EVC150, or on your PC using AVer’s VCPlayer software.

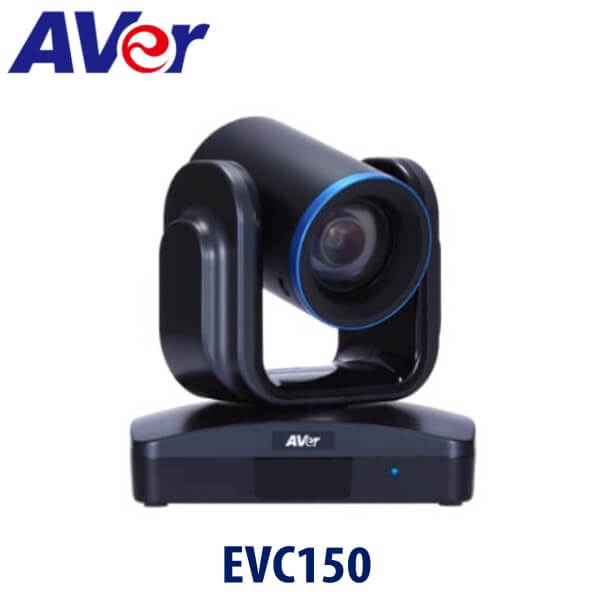

PTZ camera with 18X total zoom

The EVC150’s powerful full HD PTZ camera offers 12X optical zoom plus 1.5X digital zoom, as well as +/-130° pan and +90°/-25° tilt, quick auto-focus and clear close-ups of participants, making it ideal for any size of conference room.

Connect up to 4 microphones via daisy-chain

The AVer EVC150 Video Conferencing has new microphone array and codec employ an array of sophisticated audio processing technology, such as advanced noise reduction, automatic gain control and echo cancellation, producing crisp, true-to-life sound even better than previous AVer systems.

Remarkable 100 camera presets

AVer EVC150 Video Conferencing allow program presets on the remote control ahead of time, and during meetings you can shift the camera from a wide view of the room to a close-up of an object with just the press of a button.

Handy integration & remote access tools

Access EVC150 remotely and troubleshoot issues using Web Tool, AVer’s web-based management platform, and leverage advanced network technology Wake-on-LAN (WOL), Telnet, network test, and HELPeRTM to make the EVC150 the perfect device for integration via LAN or the internet.

AVer EVC150 Specifications

Package Contents

- Main system unit (codec)
- The New eCam PTZ camera
- EVC microphone array
- IR remote control with batteries
- Power supply (12V/5A)
- VGA cable (3M)
- Power cord (1.8M)
- Camera cable (3M)
- Microphone cable (5M)
- Network cable (3M)
- HDMI cable (3M)
- Warranty card
- Quick guide

Communications

- H.323, SIP and SIP TLS standards
- 64Kbps~4Mbps
- RJ45 network LAN (10/100/1000)
- Manual bandwidth settings

Camera

- Support for single camera*
- The New eCam PTZ camera :

- - 2-mega pixel CMOS sensor
  - 18X total zoom
  - ±130° pan; +90°/-25° tilt
  - Field of view (H): 72°
  - Field of view (V): 43°
  - Field of view (Diagonal): 82°

People Video Resolutions

- HD1080p (1920 x 1080)
- HD720p (1280 x 720)
- 480p (848 x 480)
- 4CIF (704 x 576)
- 4SIF (704 X 480)
- 360p (640 X 360)
- W288p (512 x 288)
- CIF (352 x 288)
- SIF (352 X 240)
- All resolutions at 30fps

Content Video Resolutions

- Supported Resolutions:

- - WXGA (1440 x 900)
  - HD (1360 x 768)
  - SXGA (1280 x 1024)
  - SXGA (1280 x 960)
  - WXGA (1280 x 800)
  - XGA (1024 x 768)
  - SVGA (800 x 600)
  - VGA (640 x 480)

- Output Resolutions:

- - HD720p (1280 x 720) up to 30fps

Video Standards

- H.264, H.264 HP, H.264 SVC, H.263+, H.263, H.261 (available with future firmware upgrade)
- H.239 dual video streams
- BFCP content sharing

Video Inputs

- EVC eCam camera
- VGA

Video Outputs

- HDMI
- VGA

Audio Standards

- G.711, G.722, G.722.1, G.728, G722.1C licensed from Polycom, AAC-LD^®

Audio Features

- Automatic gain control (AGC)
- Advanced noise reduction
- Acoustic echo cancellation (AEC)

Audio Inputs

- EVC microphone daisy chain up to 4
- Line-in (3.5 mm)

Audio Outputs

- Digital audio on HDMI cable
- Line-out (3.5 mm)

Other Supported Standards

- H.224, H.225, H.245, H.281, H.323 Annex Q, H.460

User Interface

- Multiple layout styles
- User-friendly OSD (22 supported languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish)
- Display/edit site name

Network

- 10/100/1000Mbps
- NAT/firewall traversal
- High Efficiency Lost Packet Recovery (HELPeR™)
- API support via Telnet
- Wake-on-LAN (WOL) support
- IPv4 and IPv6 support
- QoS
- Network Test

Security

- AES (Advanced Encryption Standard) function (128-bit)
- Password protection for system settings
- Password protection for remote system management

Web Management Tool

- Remote management through the Web
- Live monitoring via the web
- Firmware update via Ethernet/Internet
- Phonebook download/upload/edit
- Restore system settings

Value-Added Features

- Meeting Recording

- - In meeting and offline recording
  - Save directly to USB flash drive
  - Supports screen re-layout during playback
  - Playback and file conversion via VCPlayer software (.mov/.mp4 format)

- Speed dialing via hot keys (10 sets)
- camera presets (100 positions)
- Network Time Portocol (NTP)
- ScreenShare support
- VCLink support
- SnapShot
- LDAP directory
- Supports SIP voice calls

Power Supply

- AC 100V~240V, 50/60Hz
- Consumption: EIAJ 12V, 4A

Environmental Data

- Operation temperature: 0°C~40°C
- Operation humidity: 20%~80%
- Storage temperature: -20°C~60°C
- Storage humidity: 20%~80%

Physical Characteristics

- Package dimensions: 376 x 300 x 243 mm
- Package weight: 6.49kg/14.31lbs
- Main system (codec): 260 x 158.7 x 33 mm
- New eCam PTZ camera: 180 x 144 x 184 mm
- EVC microphone array: 131.9 x 118.6 x 25.5 mm
