Description

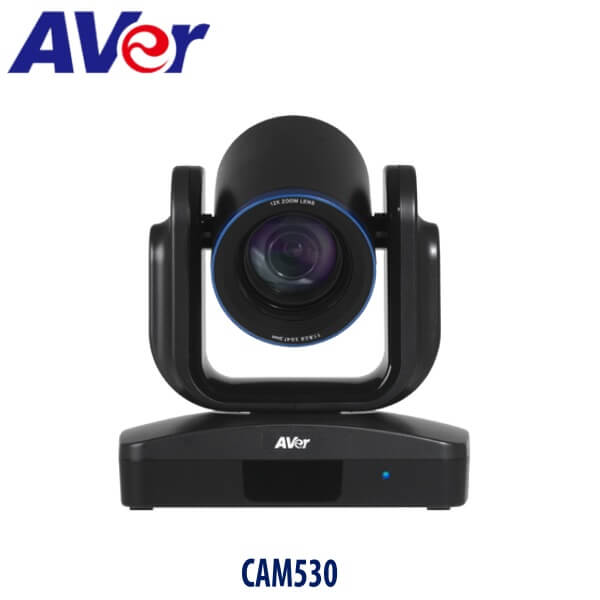

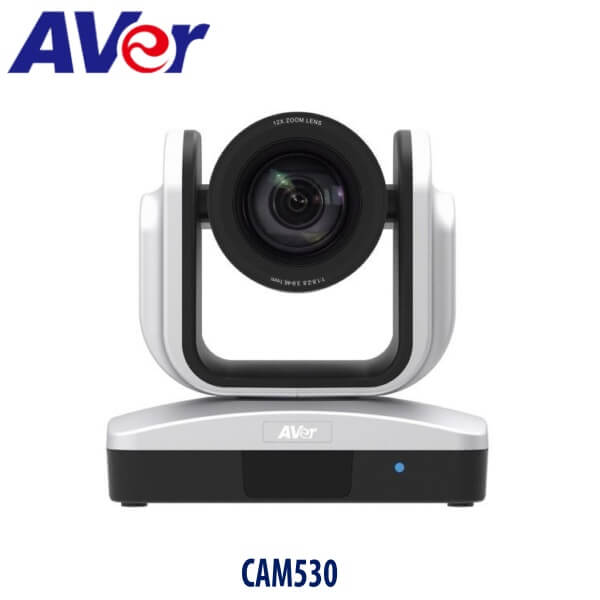

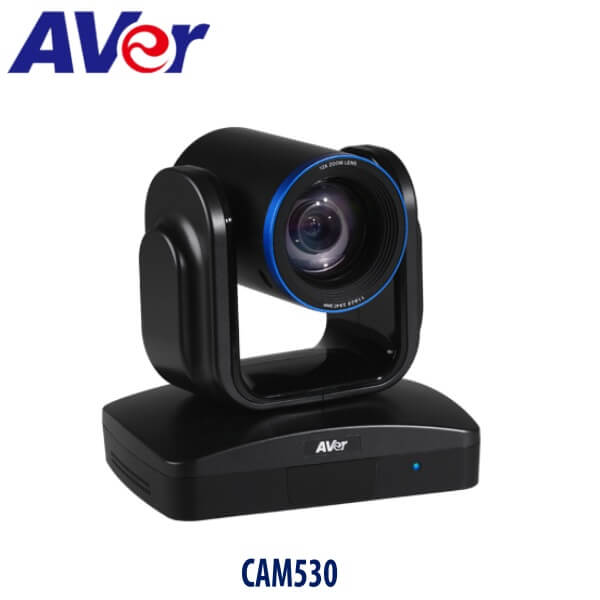

Aver CAM530 PTZ Camera Ghana

The AVer CAM530 PTZ camera Ghana is a professional, affordable price point and user-friendly features make this video conference camera designed to meet the unified communications and collaboration needs of a variety of businesses. The built-in USB interface is CAM530 is packed with features, such as a 12X optical zoom, HD 1080p and whisper silent Pan/Tilt/Zoom features, bringing you uninterrupted sharp images for a premium video conferencing experience. The AVer CAM530 PTZ camera is compatible with any laptop or desktop and works with web conferencing and video collaboration solutions, such as Zoom, Skype for Business, Microsoft Teams, RingCentral, GoToMeeting, Cisco Webex and more. Widely compatible and ideal for numerous applications and integration with other equipment, its full HD 1080p 60fps capability ensure high-quality real-time communication whether in conference rooms or industrial environments. Moreover, CAM530 provides both a USB and HDMI connection, perfect for software- or cloud-based video collaboration and other applications that require very high quality video

Key Features

AVer’s Free EZLive Application

AVer CAM530 PTZ camera packs AVer’s new EZLive, a powerful application that lets users easily record video, livestream, and capture images during real-time video conferencing. EZLive is a free application that is available on all AVer USB cameras and makes them an even more effective collaboration tool. Access a Better Collaborative Video Conferencing Experience

PTZ Camera with 18X Total Zoom

AVer CAM530 PTZ camera boasts of pan-tilt-zoom (PTZ) and 18X zoom capability collaboration needs for quality video conferencing. Packing quick auto-focus, fast lens, large aperture, subtle movement steps, and wide angle ensure an unbeatably smooth and lifelike video experience

Full HD 1080p 60fps Resolution

AVer CAM530 PTZ camera has full HD 1080p 60fps for live-like images. Even in poor lighting you can enjoy detailed, crystal-clear views of people and objects at the far site, and motion blur is nonexistent.

Up to 10 Camera Presets

AVer CAM530 PTZ camera allow presets up to 10 locations ahead of time on the remote control, and you can shift the camera from a wide view of the room to a close-up of an object with just the press of a button. The presets are easily accessed with one touch of the IR remote, saving you time and providing flexibility to swiftly move the focus of the camera to predetermined locations in your conference room.

Simply Plug and Play

Simply plug the CAM530’s USB connector into a desktop or laptop, or CAM530’s HDMI connector into a display, and you’re ready to go! With no need for device drivers, the Cam530 are able to provide top-quality video images at any time.

AVer CAM530 Specifications

• Package contents

• • Camera
  • Remote control
  • 5m Micro USB 2.0 Type-B to Type-A cable
  • Power supply
  • Quick-start guide
  • Tabletop/wall/ceiling mount
  • 6.35mm tripod mounting screw
  • Velcro
  • 3m HDMI cable
  • RS232 adapter

• Camera

• • Full HD 1080p 60fps
  • Pan: ±130°; 0.45° step
  • Tilt: +90°/-25°; 0.25° step
  • Field of view (H): 72.5° (wide) ~ 6.3° (tele)
  • Sensor: 1/2.8 low lux CMOS 2M pixel
  • Resolution: full HD 1080p (1920×1080), HD 720p (1280×720), PAL (1024×576), VGA (640×480), QVGA (320×240), QQVGA (160×120) at 60fps, 30fps and 15fps
  • Scan: progressive
  • Zoom: 18X total zoom (12X optical zoom)
  • Lens focal length: 3.9mm (wide) ~ 47.3mm (tele)
  • Lens F#: 1.8 (wide) ~ 2.8 (tele)
  • Auto Iris
  • S/N ratio: >50dB
  • Minimum illumination: 1 lx (50 IRE, F1.6, shutter 1/30)
  • 2D and 3D denoise
  • Backlight compensation
  • Flip, mirror
  • Minimum working distance: 1.5 meter
  • Include table/wall/ceiling mount
  • Kensington slot

• Remote control

• • IR (Infrared)
  • 10 camera presets (100 presets via VISCA)

• System requirements*

• • Windows^® 7/ 8/8.1/10
  • Mac OS^® X 10.7 or higher
  • Google Chromebook version 29.0.1547.70, Platform 4319.79.0

• Hardware requirements*

• • 2.4 GHz Intel^® Core 2 Duo processor
  • 2 GB RAM or more
  • USB 2.0 port

• Power supply

• • AC 100V ~ 240V
  • Consumption: EIAJ 12, 4A

• Environmental data

• • Physical characteristics: 0~40°C
  • Operation humidity: 20%~80%
  • Storage temperature: -20~60°C
  • Storage humidity: 20%~80%

• Physical characteristics

• • Package dimensions: 370 x 252 x 275mm
  • Package weight: 4.16kg/9.17lbs
  • Camera: 180 x 140 x 182mm/1.5kg
  • Remote control: 200 x 50 x 20mm/0.091kg

• Compliance and tools

• • YUV, MJPEG, H.264 SVC, AVC (high and base profile)
  • Multi-stream capable
  • USB 2.0
  • UVC (USB Video Class) 1.1 with H.264 extension
  • VISCA via RS232*
  • HDMI 1.3
  • DIP Switch
  • Downloadable diagnostic tool, field firmware upgrade tool, App for advanced features and settings

*Please check AVer product web page for compatible VISCA commands and devices.

• PTZApp

• • Free download on Windows® and Mac® computers
  • Compatible with Skype^TM Plugin for answering and hanging up via remote control
  • Upgrade firmware automatically or manually
  • Control camera
  • Set parameters and adjust camera image
  • Diagnose operating status
  • View live video

• Warranty**

• • 3-year: camera
  • 1-year: accessories

• Compatible applications

• • Skype^™, Skype for Business, V-CUBE, Google Hangouts^™, FaceTime, Cisco^® Webex^®, GoToMeeting, Adobe Connect, BlueJeans, Zoom, Vidyo, Fuze, WebRTC, CyberLink U Meeting^®

* For Full HD support, please check with your software application provider for system/hardware requirements.
** Please register online to receive free 2 year warranty extension. For detailed warranty information, please contact an AVer local representative.
*** Specifications may vary depending on countries and are subject to change without notice.
