Description

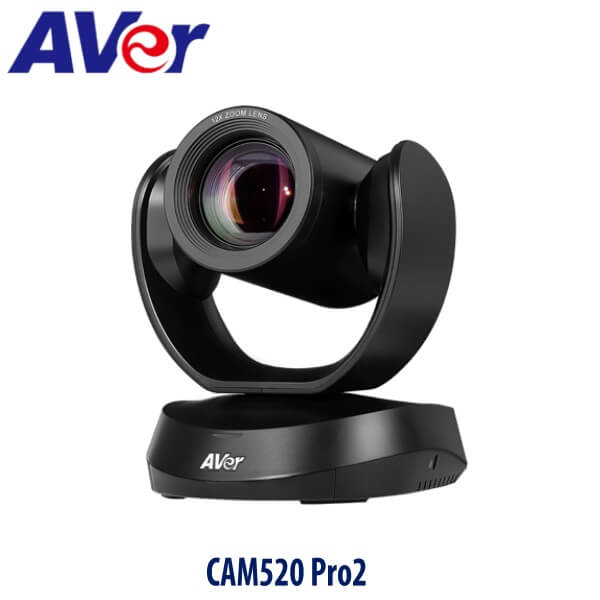

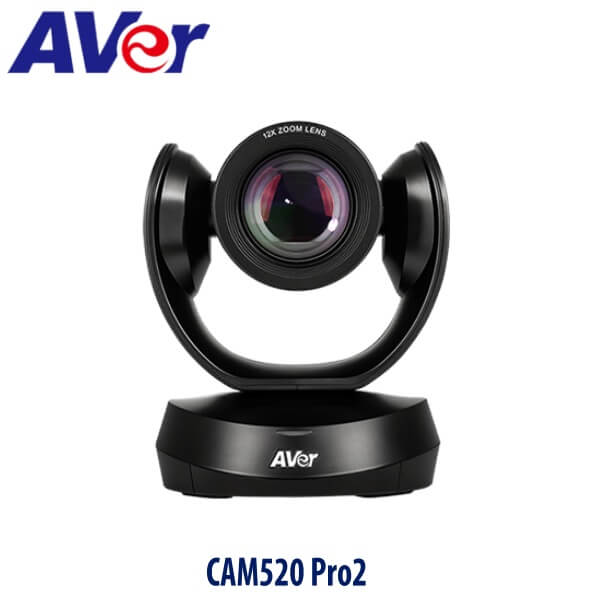

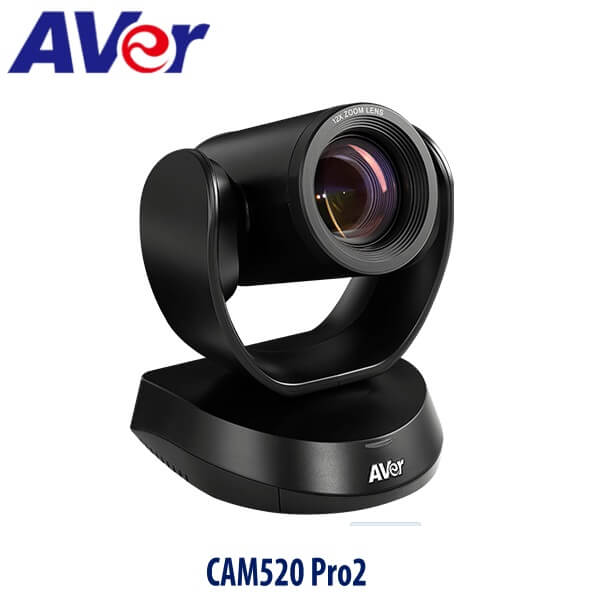

Aver CAM520 Pro2 Camera Ghana

The AVer CAM520 Pro2 Camera Ghana is an industry-leading conferencing camera for medium to large conference rooms. Optimized to deliver the best visual experience possible in a professional-grade PTZ. Equipped with 18X total zoom, upgraded AVer SmartFrame, Preset Framing, Sony True WDR, IP video streaming, and a PoE port take your video conferencing experience to the next level. The Sleek, Stylish and Smart Video Conferencing Camera is ideal communication solution packed with bundle of features like 18X total zoom, improved AVer SmartFrame. Moreover, take your video conferencing experience to the next level with innovative features Sony True WDR, IP video streaming, and a PoE+ port. The AVer CAM520 Pro2 Video Conference Camera is a powerful USB 3.1 video camera for any organization looking to get the most out of their video conferencing applications like Zoom, Microsoft Teams, RingCentral, or Google Meets. Suitable for meeting rooms of all sizes, from huddle rooms all the way up to large conference rooms. And it comes from AVer, one of our favorite partners, so you know the quality is outstanding.

Key Features

Intelligently present every detail

Present in ultimate clarity for an engaging and natural meeting experience with the Aver CAM520 Pro2 Camera. For effortless presentations with no remote, SmartFraming automatically shifts the camera’s focus and follows the presenter throughout each saved zone. Stream and record vibrant videos in full HD 1080p video at 60fps via USB 3.1 streaming or RTSP/RTMP H.264 broadcasting.

Improved SmartFrame technology

Aver CAM520 Pro2 Camera automatically frame people based on facial recognition and optimize color and light for human faces with a single click. Keep meetings efficient and safe with AVer’s improved SmartFrame. Next-generation facial and body detection ensures that everyone is visible on the screen up to 10 meters away.

Enhanced camera management

Camera management is easy with Aver CAM520 Pro2 Camera. Manage your devices with PoE+ connectivity for power, USB virtualization, and web-based management. With our enhanced management features, you’ll never have to walk to the other side of campus to operate the came

Custom control integrations

The Aver CAM520 Pro2 Camera offers built-in advanced integration capabilities, perfect for a controlled environment to allow users to connect the CAM520 Pro2 via RS232 or Visca over IP to joystick controllers and control systems.

18X total zoom (12X optical zoom with PTZ)

With one of the fastest and smoothest 18X total zoom available on the market today, the Aver CAM520 Pro2 Camera auto-focus optics and 12X true optical zoom delivers rapid and smooth pan, tilt and zoom performance to capture the smallest details with absolute clarity at every focal length.

Full 1080p high definition video

Aver CAM520 Pro2 Camera is equipped with Full 1080p high definition video giving users the highest resolution available for video conferencing and video collaboration calls. Experience life like videos with no lag.

RS232 integration capabilities

Aver CAM520 Pro2 Camera boasts of advanced integration capabilities, allowing the system to easily incorporate into a controlled environment to allow users to manage the CAM520 Pro2 over an AV control panel using the RS232 port with VISCA support.

IP based management and streaming

Ethernet network connectivity to manage and control the CAM520 Pro2 via a web browser or centralized management software. Easily connect live video content from the CAM520 Pro2 using an H.264 RTSP/RTMP stream to your cloud base or on premise streaming delivery network.

AVer CAM520 Pro2 Specifications

• Camera

• • Sony super-low-light 2M pixel sensor, clear and natural imaging in low-light conditions
  • Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
  • SmartFrame for automatic FOV adjustment to fit all participants
  • Innovative Preset Framing: Follow presenter based on preset areas
  • True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
  • Zoom: 18X total zoom (12X optical zoom)
  • Field of view(D/H/V):84.5°/76°/48°
  • Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
  • Lens F#: 1.8 (wide) ~ 2.8 (tele)
  • Mirror, flip, AE, white balance: auto/manual override via PTZApp2
  • Minimum focus distance: 1.5 m
  • Standard tripod screw holes and Kensington slot
  • People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage

• Motorized Pan & Tilt Movement

• • Pan: ±170°
  • Tilt: +90° (up) -30° (down)
  • 10 camera presets (via remote control)
  • Fast and quiet pan/tilt movement

• Video Format

• • YUV, YUY2, MJPEG, NV12
  • Network video compression format: H.264
  • Network protocol: RTSP, RTMP

• Connectivity

• • 12V/2A power adaptor
  • Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy chain)
  • USB 3.1 type-B connector
  • IP (RJ45)

• USB

• • 3.1 Gen1 Type B, backward compatible with USB 2.0
  • UVC (USB video class) 1.1

• Control

• • IR remote control
  • VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
  • Remote side: VISCA over IP, IP (RJ45)
  • UVC/UAC plug and play
  • WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
  • PTZApp 2

• Package Contents

• • CAM520 Pro2 unit
  • Remote control
  • 5m, USB2.0 type-B to type-A cable
  • Power adapter (10 ft/3 m)
  • QR code card
  • Wall-mount bracket
  • ¼” tripod screw
  • Mini DIN9 to mini DIN8 RS232 adapter

• Optional Accessories

• • Mini DIN8 to D-SUB9 RS232 adapter
  • Foldable TV mount
  • Ceiling mount
  • USB3.1 fiber extender 10m/20m/30m
  • USB3.1, 3m type-B to type-A cable

• Mount

• • Camera wall-mount bracket included
  • Optional foldable TV mount
  • Optional ceiling mount

• System Requirements

• • Windows® 7/10
  • Windows® 10 Enterprise (IoT) LTSC (version 1809)
  • Mac OS X 10.7 or higher
  • Google Chromebook™ version 29.0.1547.70

• Hardware Specs*

• • 3.2 GHz Intel® Core™ i5-4460 processor
  • 4 GB RAM or more
  • USB 3.1 port , backward compatible with USB2.0 port

• Web page browser requirement

• • Chrome: version 76.x or above
  • Firefox: version 69 or above
  • IE: Not support

• Power Supply

• • AC 100V ~ 240V, 50/60 Hz
  • Consumption: 12V, 2A
  • PoE+: 802.3at

• Free Applications for Meeting Collaboration (Windows® and MAC)

EZManager 2 : Camera Central Management software

• • Remotely manage group FW/SW updates, camera control, and settings

PTZApp 2

• • Support Virtual Streaming function.*
  • Compatible with Skype for business far-end control
  • Upgrade firmware automatically or manually
  • Control camera
  • Set parameters and adjust camera image
  • Diagnose operating status
  • View live video

EZLive

• • Real-time streaming / annotating / image capturing / video recording

*Only available in Windows PC. Doesn’t support in MAC PC.

• Environmental Data

• • Operation temperature: 0°C ~ 40°C
  • Operation humidity: 20% ~ 80%
  • Storage temperature: -20°C ~ 60°C
  • Storage humidity: 20% ~ 80%

• Dimensions

• • Package dimensions: 256 x 256 x 274 mm
  • Package weight: 3.335 kg/7.35 lbs
  • Camera: 182 x 142.7 x 153 mm/1.47 kg
  • Remote control: 200 x 50 x 21 mm/0.09 kg

• Warranty

• • Camera: 3 years
  • Accessories: 1 year

• Compatible Applications

• • Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco Webex®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit

** Specifications may vary depending on countries and are subject to change without notice.
