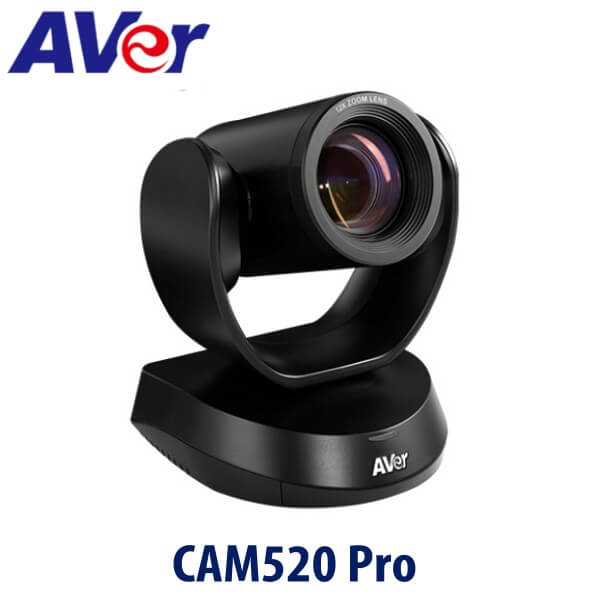

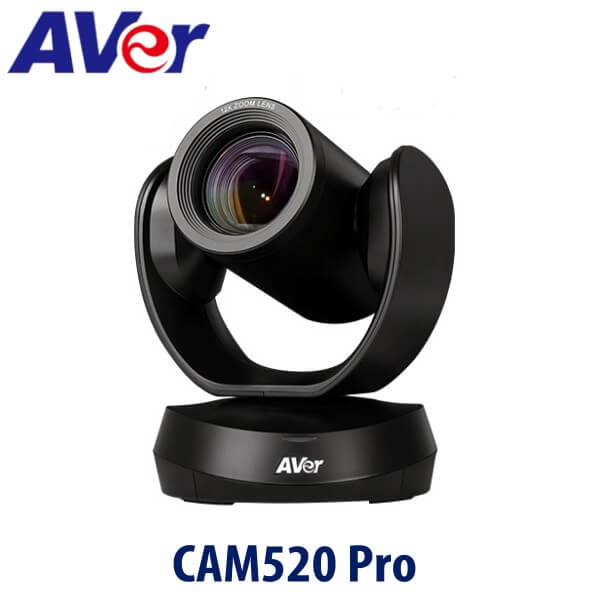

Aver CAM520 Pro PoE Ghana

The AVer CAM520 Pro PoE video conferencing camera is a powerful USB 3.1, HDMI, and PoE video camera for organizations using software-based video conferencing applications such as Zoom, Teams, Skype, RingCentral, Fuze, or Google Hangouts / Meets. Suitable for medium to large meeting rooms, from meeting rooms to large conference rooms, this camera is optimized to deliver the best possible viewing experience on a professional-grade PTZ.

With the AVer CAM520 Pro PoE you have a high-performance device for your video conferences. This model displays a Full HD image, has a 12x optical zoom, 82° viewing angle as well as valuable technologies for optimal rendering (True WDR, SmartFrame). Take advantage of a PoE+ Ethernet port for IP streaming, an HDMI output and manage the correct installation of your camera thanks to its adjustable design. ZOOM, Skype and Teams certified, the CAM520 Pro will live up to your professional demands.

With its 2 megapixel Sony sensor and 60 fps Full HD resolution, this video conferencing camera is ideal for your daily meetings. It has a 12x optical zoom and SmartFrame technology for intelligent framing to get everyone in the picture! The CAM520 Pro (PoE) offers an 82° field of view and features True WDR technology for an optimal image even in backlight. The camera can stream live content over IP thanks to its Ethernet connector. The Ethernet connector provides PoE+ power. Adjust the tilt or left/right movement of your camera, connect your camera via the USB 3.0 Type B port and use all its features with your collaboration tools such as Skype, Teams or even ZOOM.

Key Features

• PTZ conference camera with USB, HDMI and PoE connection
• High image quality with ultra-sharp details 18x zoom
• Professional experience in medium or large rooms
• Automatic caller adjustment and exposure control
• Camera remote control and IP video transmission
• Certified for Teams, Skype and Zoom
• Compatible with all softphones on the market

Ultra sharp details with 18x Zoom

Experience exceptional details with AVer CAM520 Pro PoE thanks to its full 18X zoom. Show every detail of your product to your interlocutors using high-quality 1080p 60fps video for exceptional communication. Do not miss any detail, do not miss any opportunity.

High-quality image with automatic adjustments

High-quality sensors and multi-lens glass to produce the most accurate color up to 4K. Superior light correction, no matter if it’s low light or bright light, natural or fluorescent light or if you have various types of lighting, AVer CAM520 Pro PoE boasts of white balance and exposure will bring you accurate color to the maximum True WDR.

Optimal one-click experience

AVer CAM520 Pro PoE is equipped with facial recognition-based SmartFrame function for an optimal one-click experience. This feature will allow you to start efficiently by activating face detection just by looking at the camera. Your detection sensor will quickly frame your equipment so that your interlocutors always have you in the picture.
SmartFrame Automatically Captures Everyone. Efficiently start a meeting with the CAM520 Pro by simply facing the camera to activate facial detection. AVer SmartFrame will do the rest, automatically capturing and fitting all participants on-screen in seconds.

Constant Clarity with True WDR

Freely hold meetings in high-contrast backlight environments using the AVer CAM520 Pro PoE. An embedded Sony sensor enables True WDR up to 120dB to control the exposure and provide constant clarity.

IP Based management and Streaming

Share content on YouTube or Facebook. The AVer CAM520 Pro PoE provides RTSP/RTMP support through H.264 IP streaming compatibility for livestreaming, remotely controlling the camera, and managing settings via the Chrome browser.

Aver CAM520 Pro PoE Specification

• Camera

  • Sony super-low-light 2M pixel sensor, clear and natural imaging in low-light conditions
  • Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
  • SmartFrame for automatic FOV adjustment to fit all participants
  • True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
  • Zoom: 18X total zoom (12X optical zoom)
  • Wide field of view (DFOV): 82°
  • Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
  • Lens F#: 1.8 (wide) ~ 2.8 (tele)
  • Mirror, flip, AE, white balance: auto/manual override via PTZApp
  • Minimum focus distance: 1.5 m
  • Standard tripod screw holes and Kensington slot

• Motorized Pan & Tilt Movement

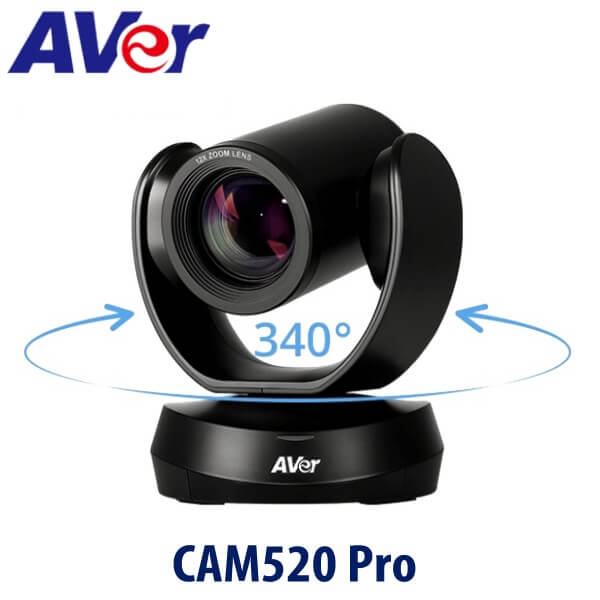

  • Pan: ±170°
  • Tilt: +90° (up) -30° (down)
  • 10 camera presets (via remote control)
  • Fast and quiet pan/tilt movement

• Video Format

  • YUV, YUY2, MJPEG, NV12
  • Network video compression format: H.264
  • Network protocol: RTSP, RTMP

• HDMI & PoE**

  • HDMI 1.3: Up to 1080p 60fps
  • DIP Switch
  • PoE+: 802.3at

  ** There are two SKUs for CAM520 Pro: CAM520 Pro and CAM520 Pro (PoE). HDMI & PoE functions are only included for the CAM520 Pro (PoE) SKU. Please contact your local agents to get these features.

• Connectivity

  • 12V/2A power adaptor
  • Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy chain)
  • USB 3.1 type-B connector
  • IP (RJ45)
  • HDMI **

  ** Only available for CAM520 Pro (PoE) SKU

• USB

  • 3.1 Gen1 Type B, backward compatible with USB 2.0
  • UVC (USB video class) 1.1

• Control

  • IR remote control
  • VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
  • Remote side: VISCA over IP, IP (RJ45)
  • UVC/UAC plug and play
  • WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
  • OSD setting: HDMI out to TV monitor**
  • PTZApp

  ** Only available for CAM520 Pro (PoE) SKU

• Mount

  • Camera wall-mount bracket included
  • Optional foldable TV mount

• System Requirements

  • Windows^® 7/10
  • Windows^® 10 Enterprise (IoT) LTSC (version 1809)
  • Mac OS X 10.7 or higher
  • Google Chromebook™ version 29.0.1547.70
  • Android 5 or higher
