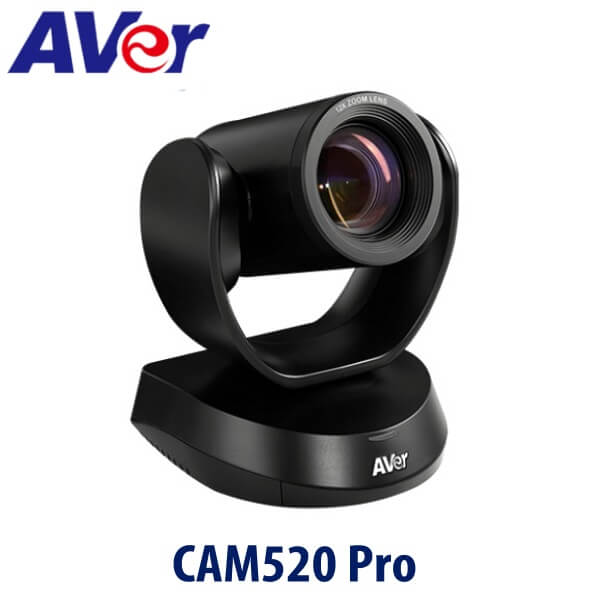

Aver CAM520 Pro Camera Ghana

The AVer CAM520 Pro Camera Ghana is a powerful USB 3.1 video conference camera for any organization looking to get the most out of their video conferencing applications like Zoom, Microsoft Teams, RingCentral, or Google Meets. Suitable for meeting rooms of all sizes, from huddle rooms all the way up to large conference rooms. And it comes from AVer, one of our favorite partners, so you know the quality is outstanding. Optimized to deliver the best visual experience possible in a professional-grade PTZ. Professional USB 3.1 Conferencing Camera for Mid-to-Large Rooms

The AVer CAM520 Pro Camera is equipped with a high-performing 18X total zoom that displays every detail in crystal-clear quality. Also, on-trend technology such as AVer SmartFrame, Sony True WDR, and IP video streaming provide enterprises with a professional meeting experience. It provides Sony super low light 2M pixel sensor, 1920×1080 max resolution with 60, 30, or 15 fps, True WDR up to 120db, and 10 camera presets which can be easily accessed with remote. The AVer Cam520 Pro also enables Ethernet network connectivity to manage and control via a web browser or centralized management software, connecting live video content or stream to your cloud base or on-premise streaming delivery network.

Key Features

SmartFrame

AVer CAM520 Pro Camera is equipped with smart frame technology that automatically captures everyone in the room. Efficiently start a meeting with the CAM520 Pro by simply facing the camera to activate facial detection. Aver’s SmartFrame will do the rest, automatically capturing and fitting all participants on-screen in seconds.

Lighting Balance with True WDR

AVer CAM520 Pro Camera users can hold meetings in high-contrast backlight environments. The camera is embedded with Sony sensor enabling True WDR up to 120dB to control the exposure and provide constant clarity.

IP Video Streaming

Remotely Control the AVer CAM520 Pro Camera and Share Online with IP Video Streaming. Share content on YouTube or Facebook. The CAM520 Pro provides RTSP/RTMP support through H.264 IP streaming compatibility for livestreaming, remotely controlling the camera, and managing settings via the Chrome browser.

18X total zoom (12X optical zoom with PTZ)

AVer CAM520 Pro Camera is equipped with one of the fastest and smoothest 18X total zoom. The auto-focus optics and 12X true optical zoom delivers rapid and smooth pan, tilt and zoom performance to capture the smallest details with absolute clarity at every focal length.

Full 1080p high definition video

With Full 1080p high definition video built into the CAM520 Pro you will enjoy the highest resolution available for your video conferencing and video collaboration calls. With Full 1080p video at 30 frames per second enjoy highest resolution available for your video conferencing and video collaboration calls.

Plug-N-Play

AVer CAM520 Pro Camera is compatible with all of your favorite applications connecting to virtually any desktop or laptop, via a single USB cable.

RS232 integration capabilities

AVer CAM520 Pro Camera boasts of advanced integration capabilities the system can therefore, easily incorporate into a controlled environment to allow users to manage the CAM520 Pro over an AV control panel using the RS232 port with VISCA support.

10 camera presets

The AVer CAM520 Pro Camera allows you to customize your meetings by storing up to 10 PTZ presets. Each preset can be easily accessed with one touch of the remote, saving you time, and providing flexibility to swiftly move to predetermined locations in the conference room.

AVer CAM520 Pro Specifications

• Camera

• • Sony super-low-light 2M pixel sensor, clear and natural imaging in low-light conditions
  • Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
  • SmartFrame for automatic FOV adjustment to fit all participants
  • True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
  • Zoom: 18X total zoom (12X optical zoom)
  • Wide field of view (DFOV): 82°
  • Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
  • Lens F#: 1.8 (wide) ~ 2.8 (tele)
  • Mirror, flip, AE, white balance: auto/manual override via PTZApp
  • Minimum focus distance: 1.5 m
  • Standard tripod screw holes and Kensington slot

• Motorized Pan & Tilt Movement

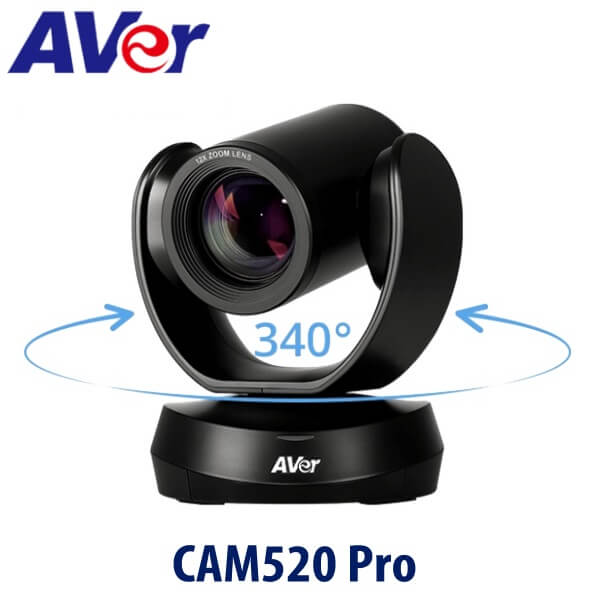

• • Pan: ±170°
  • Tilt: +90° (up) -30° (down)
  • 10 camera presets (via remote control)
  • Fast and quiet pan/tilt movement

• Video Format

• • YUV, YUY2, MJPEG, NV12
  • Network video compression format: H.264
  • Network protocol: RTSP, RTMP

• HDMI & PoE

• • HDMI 1.3: Up to 1080p 60fps
  • DIP Switch
  • PoE+: 802.3at

• Connectivity

• • 12V/2A power adaptor
  • Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy chain)
  • USB 3.1 type-B connector
  • IP (RJ45)
  • HDMI

• USB

• • 3.1 Gen1 Type B, backward compatible with USB 2.0
  • UVC (USB video class) 1.1

• Control

• • IR remote control
  • VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
  • Remote side: VISCA over IP, IP (RJ45)
  • UVC/UAC plug and play
  • WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
  • OSD setting: HDMI out to TV monitor**
  • PTZApp

• Mount

• • Camera wall-mount bracket included
  • Optional foldable TV mount

• System Requirements

• • Windows^® 7/10
  • Windows^® 10 Enterprise (IoT) LTSC (version 1809)
  • Mac OS X 10.7 or higher
  • Google Chromebook™ version 29.0.1547.70
  • Android 5 or higher

• Hardware Specs*

• • 3.2 GHz Intel^® Core™ i5-4460 processor
  • 4 GB RAM or more
  • USB 3.1 port , backward compatible with USB2.0 port

• Web page browser requirement

• • Chrome: version 76.x or above
  • Firefox: version 69 or above
  • IE: Not support

• Power Supply

• • AC 100V ~ 240V, 50/60 Hz
  • Consumption: 12V, 2A

• Free Applications for Meeting Collaboration (Windows^®and MAC)

EZManager Camera Central Management software

• • Remotely manage group FW/SW updates, camera control, and settings

PTZApp

• • Compatible with Skype for business far-end control
  • Upgrade firmware automatically or manually
  • Control camera
  • Set parameters and adjust camera image
  • Diagnose operating status
  • View live video

EZLive

• • Real-time streaming / annotating / image capturing /video recording

• Environmental Data

• • Operation temperature: 0°C ~ 40°C
  • Operation humidity: 20% ~ 80%
  • Storage temperature: -20°C ~ 60°C
  • Storage humidity: 20% ~ 80%

• Dimensions

• • Package dimensions: 256 x 256 x 274 mm
  • Package weight: 3.335 kg/7.35 lbs
  • Camera: 182 x 142.7 x 153 mm/1.47 kg
  • Remote control: 200 x 50 x 21 mm/0.09 kg

• Package Contents

• • CAM520 Pro unit
  • Remote control
  • USB 3.1 type-B to type-A cable (10 ft/3 m)
  • Power adapter (10 ft/3 m)
  • Quick-start guide
  • Warranty card
  • Wall-mount bracket
  • ¼” tripod screw
  • HDMI cable** (10 ft/3 m)
  • Mini Din9 to RS232 adapter

• Optional Accessories

• • Mini DIN9 to RS232 adapter
  • Foldable TV mount

• Warranty**

• • Camera: 3+2 years (not available in US, JP, and certain other areas)
  • Accessories: 1 year

• Compatible Applications

• • Zoom, Microsoft^® Teams, Skype for Business, Skype, Google Hangouts Meet, Intel^® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting^®, TrueConf, Adobe^® Connect™, Cisco Webex^®, Fuze, GoToMeeting™, Microsoft^® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit
