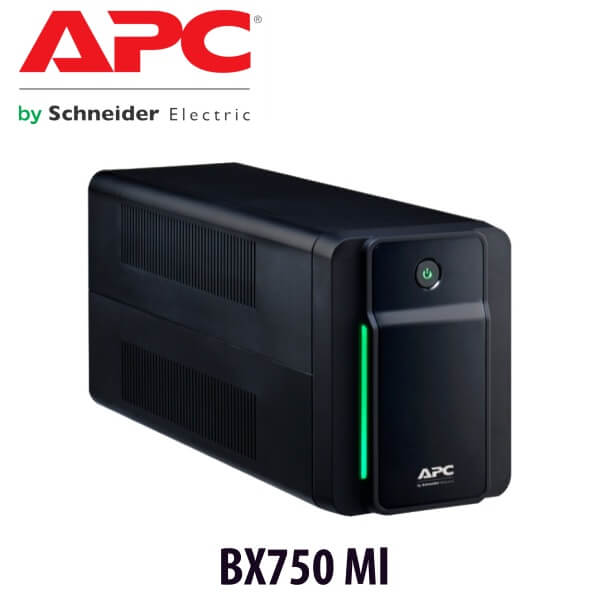

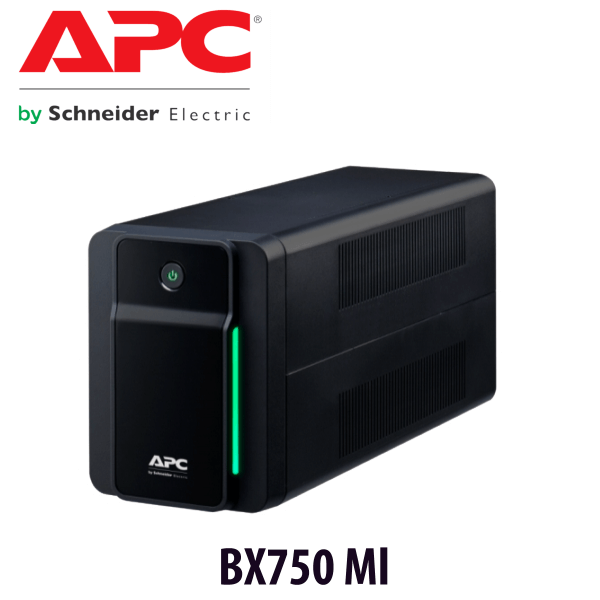

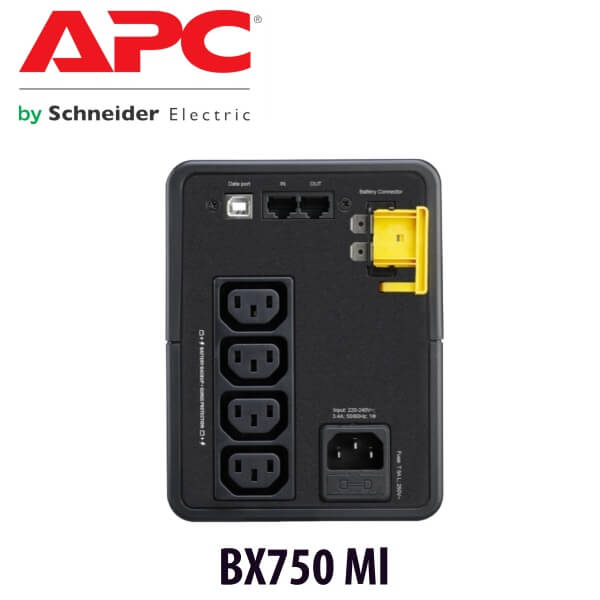

APC BX750 MI Ghana



APC BX750 Ml Ghana

APC BX750 Ml Ghana is features data line surge protection providing protection of connected equipment from power surges on the data lines. It reserves power capacity and run time for connected equipment.

Category:

Description

APC BX750 Ml UPS Ghana

APC BX750 Ml Ghana is features data line surge protection which provides protection of connected equipment from power surges on the data lines. It reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment. It is an intelligent system providing Automatic Voltage Regulation (AVR) automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

APC BX750MI has LED Indicators provide easy-to-read status of the unit and utility power conditions. The intuitive control quickly understands unit and power status with visual indicators thanks to LED status display. Additionally, the APC BX750MI packs audible alarms provides notification of changing utility power and UPS power conditions. APC UPS Intelligent battery management system maximizes battery performance, life, and reliability through intelligent, precision charging. Moreover, battery failure notification provides early-warning fault analysis on batteries enabling timely preventive maintenance

Key Features

Automatic Voltage Regulation (AVR

The APC BX750 Ml Ghana automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

Data line surge protection

APC BX750 Ml provides protection of connected equipment from power surges on the data lines.

LED Indicators

APC BX750MI has LED Indicators provide easy-to-read status of the unit and utility power conditions. The intuitive control quickly understands unit and power status with visual indicators thanks to LED status display.

Surge only outlets

Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Battery and surge protected outlets

Back up and protect your hardware and data during power outages, surges and spikes.

Safety-agency approved

APC BX750MI Ghana is safety approved ensuring the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Automatic self-test

The system provides periodic battery self-test ensures early detection of a battery that needs to be replaced.

Intelligent battery management

APC BX750MI maximizes battery performance, life, and reliability through intelligent, precision charging.

Battery failure notification

APC BX750MI Ghana provides early-warning fault analysis on batteries enabling timely preventive maintenance

Audible alarms

Provides notification of changing utility power and UPS power conditions

Technical Specifications

Output

  • Max Configurable Power (Watts) : 410 Watts / 750VA
  • Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
  • Topology : Line interactive
  • Waveform type : Stepped approximation to a sinewave
  • Transfer Time :6 ms typical: 10 ms maximum

Input

  • Input frequency : 50/60 Hz +/- 5 Hz Auto-sensing
  • Input voltage range for main operations : 140 – 300V
  • Number of Power Cords : 1
  • Input Power Factor at Full Load : 0.63

Batteries & Runtime

  • Battery type : Lead-acid battery
  • Typical recharge time : 8hour(s)
  • Nominal Battery Voltage : 12 V

Communications & Management

  • Interface Port(s) : USB
  • Control panel : LED Status display with on line: on battery
  • Audible Alarm : Alarm when on battery: distinctive low battery alarm

Surge Protection and Filtering

  • Surge energy rating : 273Joules
  • Data Line Protection : RJ45 10/100/1000 Base-T Ethernet protection

Physical

  • Maximum Height : 160MM, 16.0CM
  • Maximum Width : 120MM, 12.0CM
  • Maximum Depth : 355MM, 35.5CM
  • Net Weight : 5.4KG
  • Shipping weight : 5.9KG
  • Shipping Height : 250MM, 25.0CM
  • Shipping Width : 197MM, 19.7CM
  • Shipping Depth : 430MM, 43.0CM
  • Color : Black
  • SCC Codes : 10731304410796

Environmental

  • Operating Temperature : 0 – 40 °C
  • Operating Relative Humidity : 0 – 95 (Non-condensing) %
  • Operating Elevation : 0 – 3000meters
  • Storage Temperature : -15 – 40 °C
  • Storage Relative Humidity : 0 – 95 (Non-condensing) %
  • Storage Elevation : 0 – 3000meters
  • Audible noise at 1 meter from surface of unit : 40.0dBA
  • Protection Class : IP20

Conformance

  • Approvals : CB, CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2
  • Equipment protection policy : Lifetime: 50000 euros
  • Standard warranty : 2 years repair or replace

Datasheet Download
